RG174
| Categories | Coaxial cable 50ohm |
|---|---|
| Brand | WEIMAI CABLE |
| Update Time | Jul 8,2025 |
Detail Information

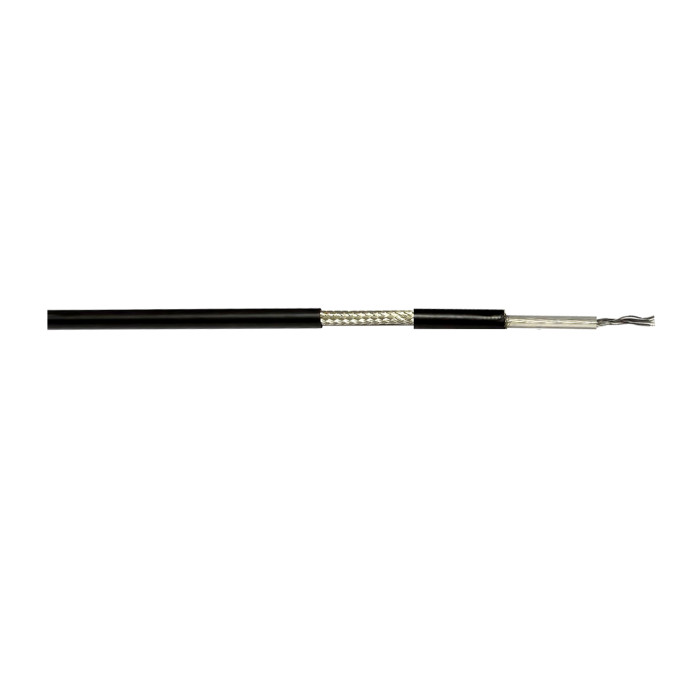

COAXIAL CABLE RG174 50Ohm
Product construction | OD(mm) | |||
Conductor | 7/0.16bare copper-clad steel(BCCS) | 0.48 | ||
Dielectric | Polyethylene(PE) | 1.52 | ||
Shield | Tinned copper(TC) | 1.93 | ||
Jcaket | Polyvinylchloride(PVC) | 2.80 | ||
Mechanical characteristic | ||||
Weight per | 1.19kg | |||
Minimum bend radius | 25mm | |||
Operating temperature range | -40℃ to +75℃ | |||
RoHs compliance | 2011/65/EU(RoHs) | |||
Electrical characteristic | ||||
Impedance | 50 | +/-2 ohms | ||
Capacitance | 101 | pF/m.max | ||
Maximum voltage | 1100 | volts | ||
Velocity of propagation | 66 | % | ||
Operating frequency | 1 | GHz | ||
Screening effectiveness | ≥40 | dB(up to 1 GHz) | ||
Insulation resistance | ≥1x108 | MΩm | ||
Max.operating voltage | ≤0.85 | kVrms(at sea level) | ||
Attenuation | ||||
Frenquency MHz | Typical (dB/m) | Max.CW power | ||
100.00 | 0.276 | 117 | ||
400.00 | 0.623 | 59 | ||
700.00 | 0.886 | 44 | ||
1000.00 | 1.12 | 37 | ||
