RG316
| Categories | Coaxial cable 50ohm |
|---|---|
| Brand | WEIMAI CABLE |
| Update Time | May 24,2025 |
Detail Information

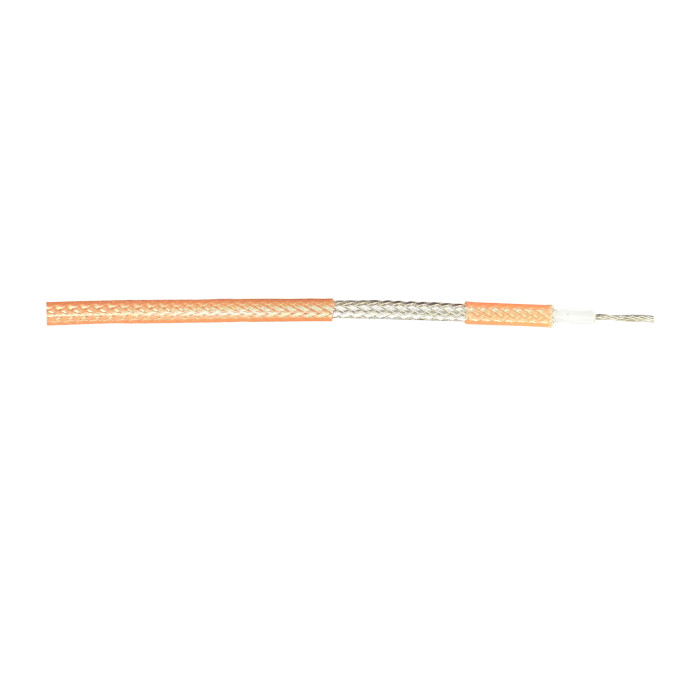

COAXIAL CABLE RG316 50Ohm
Product construction | |||
Inner conductor | Anaerobic copper wire(diameterø0.46mm) | ||
Insulation | Soild PE(diameterø1.52mm) | ||
1st shield | AL foil(coverage≥118%) | ||
2nd shield | Tinned copper wire(coverage≥92%) | ||
Jacket | PE(diameterø2.79mm) | ||
Other | Color,printing according to customer's requirement | ||
Mechanical characteristic | |||
Minimum bending radius | 28mm | ||
Inner conductor adhesion force | ＞18N | ||
Application environment | -40℃~+75℃ | ||
Environmental standards | ROHS | ||
Salt spray test | Inner conductor:corrosion≤1.5inches;outer conductor:visualnon-oxidation | ||
Packaging length | According to customer's requirement | ||
Electrical characteristic | |||
Impendance Ω | Transmission rate % | Return loss dB | |
50±3 | 66 | 5---1002MHz＞20 | |
Attenuation | |||
Frenquency MHz | @20℃ db/100m | @20℃
db/100Ft | |
200.00 | 47.21 | 14.4 | |
900.00 | 80.10 | 24.43 | |
1400.00 | 101.41 | 30.93 | |
1800.00 | 115.80 | 35.32 | |
2300.00 | 131.90 | 40.23 | |
