RG213
| Categories | Coaxial cable 50ohm |
|---|---|
| Brand | WEIMAI CABLE |
| Update Time | May 24,2025 |
Detail Information

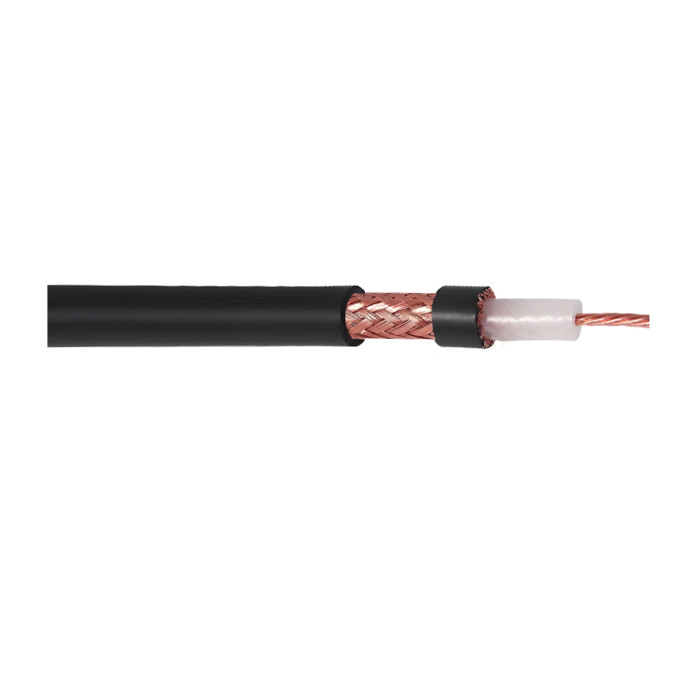

COAXIAL CABLE RG213 50Ohm
Product construction | |||
Center conductor | 7*0.75mm copper/CU | ||
Dielectric | 7.24±0.05mm soild PE | ||
Braid coverage | 128X0.15mm CU braiding intercept length 20mm 90% coverage | ||
Jcaket | 10.30±0.10mmPVC Black | ||
Package | 1000M/ROLL 305M/DRUM 500M/DRUM | ||
Mechanical characteristic | |||
Sparker test | 4000VAC | ||
Impedance | 75±3 Ohm | ||
Capacitance | 54±3pF/m | ||
Velocity of propagation | 85% | ||
Return loss | 20dB min(5-2300MHz) | ||
Attenuation | |||
Frenquency MHz | @20℃ db/100m | @20℃
db/100Ft | |
5.00 | 0.81 | 2.65 | |
50.00 | 1.5 | 4.9 | |
100.00 | 2.0 | 6.5 | |
200.00 | 2.8 | 9.2 | |
400.00 | 4.1 | 13.6 | |
700.00 | 5.6 | 18.4 | |
900.00 | 6.2 | 20.3 | |
1000.00 | 6.68 | 21.9 | |
1450.00 | 8.15 | 26.72 | |
1800.00 | 9.0 | 29.5 | |
2250.00 | 10.56 | 34.62 | |
