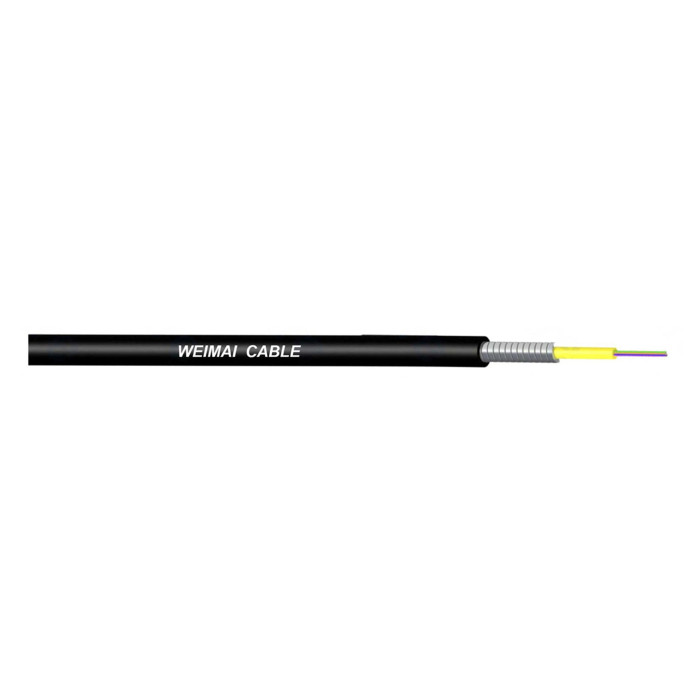

4 to 12 Fibers Armored Cable SM
| Categories | Fiber Cable |
|---|---|
| Brand | WEIMAI CABLE |
| Update Time | May 1,2025 |
Detail Information
4 to 12 Fibers Armored Cable SM
Temperature Range
Transport/Storage temp:-40℃~+70℃
Installation temp:-30℃~+50℃
Operation temp:-20℃~+70℃
Structural Characteristics | |||
Fiber count | 4.12 | Stainless steel braiding | Enhances cable's moisture proof performance and ensures cable's flexibility and anti-bending capability |
Stainless steel flexible tube | Has nice moisture property | Cable sheath | LSZH |
Strength member | Aramid yarns | Cable sheath color | Black |
Technical Data | ||||||||
Fiber count | Loose tube No. | Normal dia (mm) | Min.bending radius(mm) | Permissble tensile force(N) | Permissble pressure force (N/100mm) | |||
Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
2 | 1 | 7.0±0.1 | 20D | 10D | 1000 | 600 | 5000 | 3000 |
6 | 1 | 7.5±0.1 | 20D | 10D | 1000 | 600 | 5000 | 3000 |
8 | 1 | 5.0±0.1 | 20D | 10D | 1000 | 600 | 5000 | 3000 |
12 | 1 | 8.5±0.1 | 20D | 10D | 1000 | 600 | 5000 | 3000 |
The minimum bend radius(static)is 5D when G.657fiber is used. | ||||||||
"D"is cable dianeter of the round cable. | ||||||||
