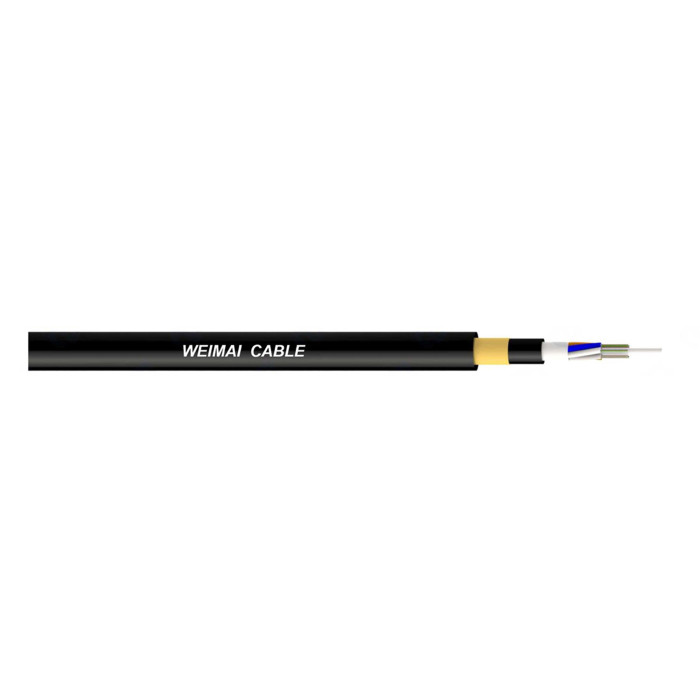

ADSS
| Categories | Fiber Cable |
|---|---|
| Brand | WEIMAI CABLE |
| Update Time | May 1,2025 |
Detail Information
ADSS
Temperature Range
Transport/Storage temp:-40℃~+70℃
Installation temp:-30℃~+50℃
Operation temp:-40℃~+70℃
Structural Characteristics | |||
Fiber count | 2~144 | Waterproof layer | Cable core filled with cable gel or water blocking tape,water blocking yarns |
Loose tude | Colored fiber in PBTloose tude,filled with fiber gel | High-strength aramid yam | Offers very high tensille strength,small diameter and light weight to fit differrent climate consitions and laying spans |
Gentral Strength member | Steel wire or FRP(fiber reinforce plastic rod) | Sheath | Polyethylene(PE) |
Technical Data | ||||||||
Item | Paramater | Item | Paramater | |||||
Cable type | ADSS-PE/AT24B1-12kN(typacal) | Young's modulus(Gpa) (full cable cross-section) | depending on span,load,ect | |||||
Fiber attenuation(B1) (dB/km) | 1310mm | ≤0.36 | ||||||
1550mm | ≤0.22 | Thermal expansion coefficient (10-5/℃) | ≤10 | |||||
Nominal cable outer dia(mm) | 13(typacal) | Min.bending radius(mm) (D:cable dia) | static:15D dynamic:25D | |||||
Nominal thickness of outer sheath (mm) | ≥1.7 | |||||||
Cable weight(kg/km) | 80-180 | Representative span(m) | 100~1000 | |||||
"D"is cable dianeter | ||||||||
All sizes and performance values can be specified by customer. | ||||||||
