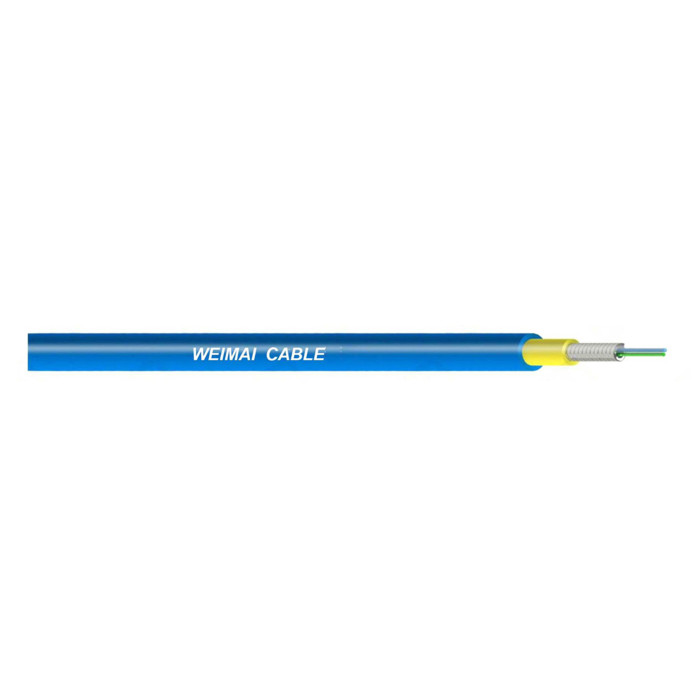

Duplex Armored Cable SM
| Categories | Fiber Cable |
|---|---|
| Brand | WEIMAI CABLE |
| Update Time | May 1,2025 |
Detail Information
Duplex Armored Cable SM
Temperature Range
Transport/Storage temp:-40℃~+70℃
Installation temp:-30℃~+50℃
Operation temp:-20℃~+70℃
Structural Characteristics | |||
Fiber count | 2 | Stainless steel braiding | Enhances cable's moisture proof performance and ensures cable's flexibility and anti-bending capability |
Stainless steel flexible tube | Has nice moisture property | Cable sheath | LSZH |
Strength member | Aramid yarns | Cable sheath color | Black |
Technical Data | |||||||||
Fiber count | Loose tube No. | Normal dia (mm) | Cable weight (kg/km） | Min.bending radius(mm) | Permissble tensile force(N) | Permissble pressure force (N/100mm) | |||
Static | Dynamic | Short-term | Long-term | Short-term | Long-term | ||||
2 | 1 | 2.85±0.10 | 18 | 20D | 10D | 400 | 200 | 5000 | 3000 |
The minimum bend radius(static)is 5D when G.657fiber is used. | |||||||||
"D"is cable dianeter of the round cable. | |||||||||
