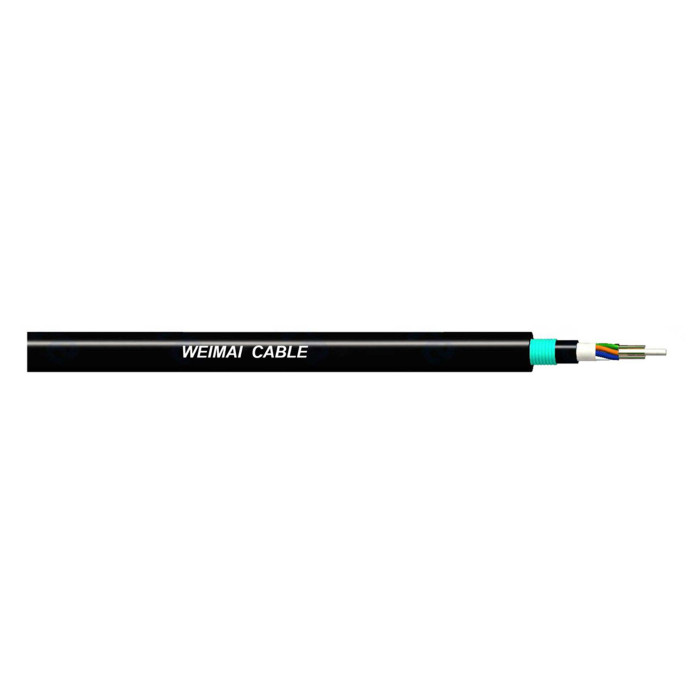

GYTY53(GYFTY53)
| Categories | Fiber Cable |
|---|---|
| Brand | WEIMAI CABLE |
| Update Time | May 1,2025 |
Detail Information
GYTY53(GYFTY53)
Temperature Range
Transport/Storage temp:-40℃~+70℃
Installation temp:-30℃~+50℃
Operation temp:-40℃~+70℃
Structural Characteristics | |||
Fiber count | 2~288 | Double sheaths | Enhance the pressure resistance, shot-proof performance and moisture resistance of the cable |
Loose tude | Colored fiber in PBTloose tude,filled with fiber gel | Sheath | Polyethylene(PE) |
Waterproof layer | Cable core filled with cable gel or
water blocking tape,water blocking
yarns | ||
Technical Data | ||||||||
Fiber count | Cable outer dia (mm) | Cable weight (kg/km） | Min.bending radius(mm) | Permissble tensile force(N) | Permissble pressure force (N/100mm) | |||
Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
2-36 | 12.4 | 143 | 12.5D | 25D | 3000 | 1000 | 3000 | 1000 |
38-72 | 13 | 163 | 12.5D | 25D | 3000 | 1000 | 3000 | 1000 |
74-84 | 13.7 | 180 | 12.5D | 25D | 3000 | 1000 | 3000 | 1000 |
86-96 | 14.3 | 195 | 12.5D | 25D | 3000 | 1000 | 3000 | 1000 |
98-108 | 15 | 213 | 12.5D | 25D | 3000 | 1000 | 3000 | 1000 |
132-144 | 17 | 268 | 12.5D | 25D | 3000 | 1000 | 3000 | 1000 |
288 | 20.2 | 370 | 12.5D | 25D | 3000 | 1000 | 3000 | 1000 |
"D"is cable dianeter | ||||||||
All sizes and performance values can be specified by customer. | ||||||||
