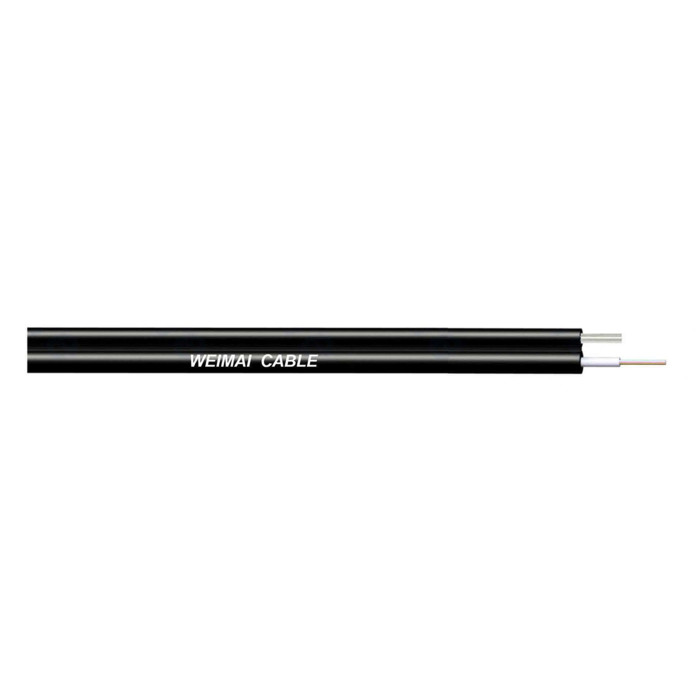

GYXTC8(Y)
| Categories | Fiber Cable |
|---|---|
| Brand | WEIMAI CABLE |
| Update Time | May 1,2025 |
Detail Information
GYXTC8(Y)
Temperature Range
Transport/Storage temp:-40℃~+70℃
Installation temp:-30℃~+50℃
Operation temp:-40℃~+70℃
Structural Characteristics | |||
Fiber count | 2~48 | Messenger wire | Single steel wire or stranded steel wire |
Loose tude | Colored fiber in PBTloose tude,filled with fiber gel | Sheath | Polyethylene(PE) |
Technical Data | ||||||||
Fiber count | Cable outer dia (mm) | Cable weight (kg/km） | Min.bending radius(mm) | Permissble tensile force(N) | Permissble pressure force (N/100mm) | |||
Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
2-12 | 5.5*12.4 | 84 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
14-24 | 6.2*13.1 | 91 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
26-36 | 6.9*13.8 | 98 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
38-48 | 7.5*14.4 | 105 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
"D"is cable dianeter | ||||||||
All sizes and performance values can be specified by customer. | ||||||||
