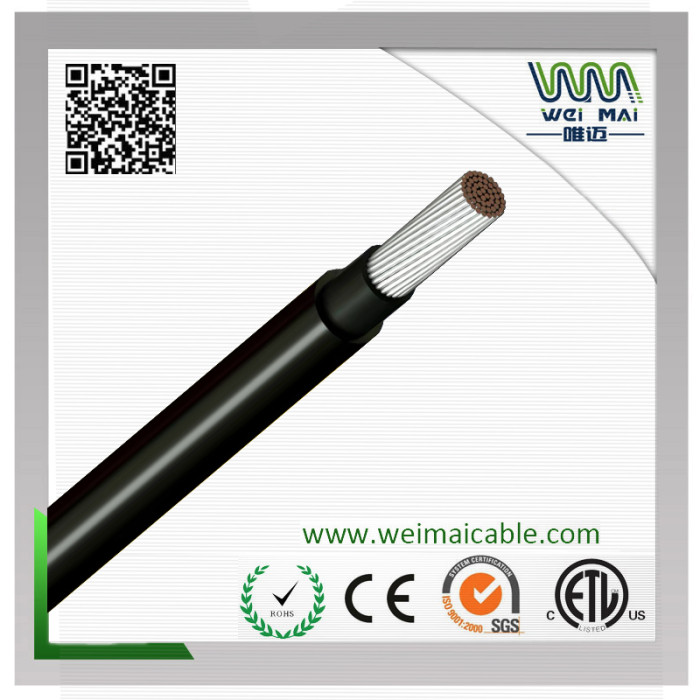

Solar Panel Cable PV1500DC-AL-K
| Categories | Solar Panel Cable |
|---|---|
| Brand | WEIMAI CABLE |
| Model | PV1500DC-AL-K |
| FOB port | NINGBO SHANGHAI |
| Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Download |  |
| Update Time | May 1,2025 |
Detail Information
PVC1500DC-AL-K
Product Size | |||||
Series of TUV Cable | Nominal Cross Section (mm²) | Strand Design No./dia(mm) | Conductor Resistance 20℃/km(Ω) | Outer Diameter (mm±0.2) | Jacket Colour |
PV1500DC-AL-K 2PFG 2462 | 1X6 | 84/0.3 | ≤5.09 | 6.2±0.15 | Black |
Basic Technical Data | ||||
Certifications | TUV | |||
Test staandard | 2PFG 2462 | |||
Certificate No. | R50539927 | |||
Material | Conductor | Alumimium alloy | ||
Insulation | XLPE/LSZH | |||
Sheath | XLPE/LSZH | |||
Rated Voltage | AC1.0/1.0KV | TI120℃（2000h） | DC 1500V | |
Temperature Range | -40℃——90℃ | |||
Min.bending radius | 6xOuter Diameter | |||
Halogen free | Yes | |||
UV resistance | Yes | |||
