Solar Panel Cable IEC62930 Twinaxial CABLE
| Categories | Solar Panel Cable |
|---|---|
| Brand | WEIMAI CABLE |
| Model | IEC62930 |
| FOB port | NINGBO SHANGHAI |
| Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Download |  |
| Update Time | Jun 15,2025 |
Detail Information

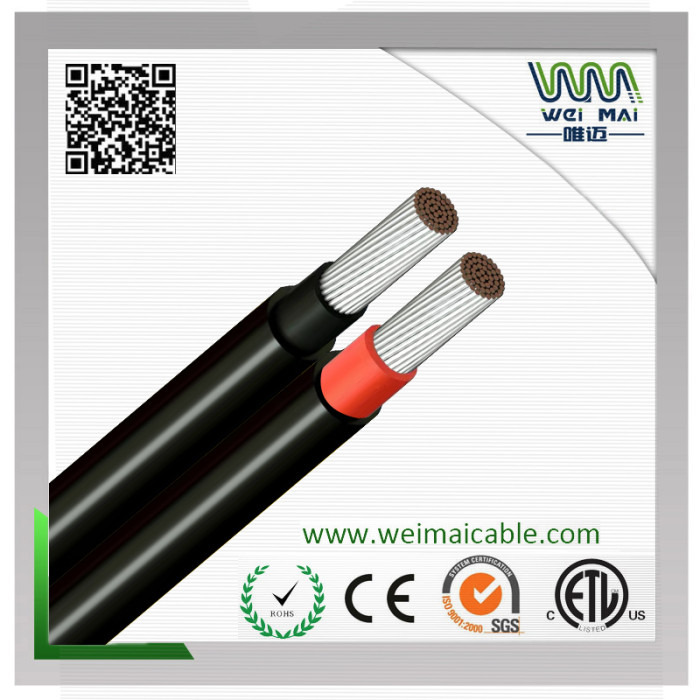

IEC62930 TWINAXIAL CABLE
Product Size | |||||
Series of TUV Cable | Nominal Cross Section (mm²) | Strand Design No./dia(mm) | Conductor Resistance 20℃/km(Ω) | Outer Diameter (mm±0.2) | Jacket Colour |
TUV1500V | 2X2.5 | 49/0.25±0.008mm | ≤8.21 | 5.3*10.8 | Black |
2X4.0 | 56/0.285±0.008mm | ≤5.09 | 5.65*11.4 | Black | |
2X6.0 | 84/0.285±0.008mm | ≤3.39 | 6.5*13.3 | Black | |
2X10 | 74/0.4±0.008mm | ≤1.95 | 7.4*15.1 | Black | |
Basic Technical Data | |||
Certifications | TUV | ||
Test staandard | IEC62930BLACK(BLACK/RED) | ||
Certificate No. | B1077320002 | ||
Material | Conductor | Stranded tin plated copper | |
Insulation | XLPE/LSZH | ||
Sheath | XLPE/LSZH | ||
Rated Voltage | AC1.0/1.0KV | DC 1500V | |
Temperature Range | -40℃——90℃ | ||
Min.bending radius | 6xOuter Diameter | ||
Halogen free | Yes | ||
UV resistance | Yes | ||
