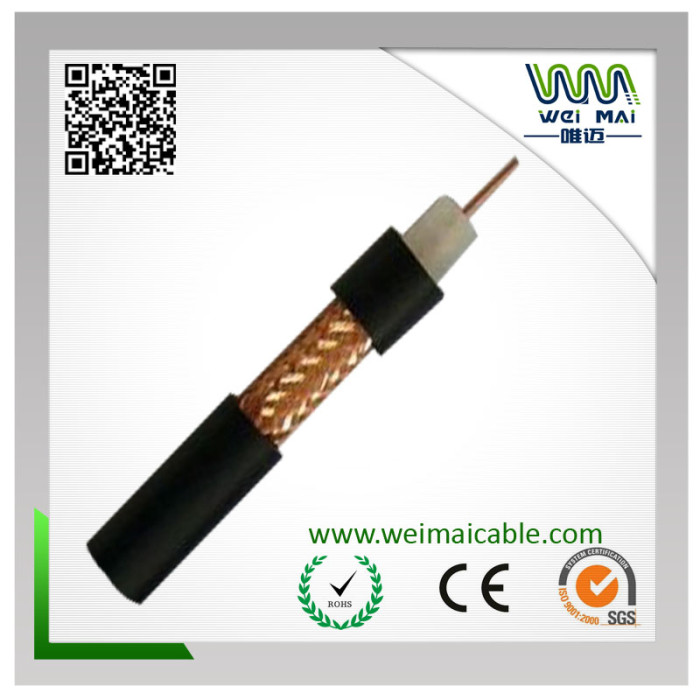

Coaxial Cable RG58 50ohm

Coaxial Cable RG58 50ohm
CategoriesRG58 cable
AlbumView larger image
BrandWEIMAI CABLE
ModelWMRG5801
Place of OriginZhejiang,China(Mainland)
Brand NameWEIMAI
Conductor MaterialCCS/CCA/Solid Copper
Insulation MaterialPE
Braid Density40%-90%
1st shieldBonded Foil
2st shieldBraided Shield
JacketPVC
Unit PriceUS $ 0.08 / meter
FOB portShanghai/Ningbo
Terms of PaymentL/C, D/P, T/T, Discuss
Download DOC
Update Time2019-04-20
Detail Information

Coaxial Cable China Manufacturer Supplier

Coaxial Cable RG58 50ohm

Impedance:50±3Ohm                              Capacitance:28.5±3pf/m                      Velocity of Propagain:85%   Reutm Los:20dB min(5-2300MHZ)                                         FOB Pront :ShangHai/NingBo

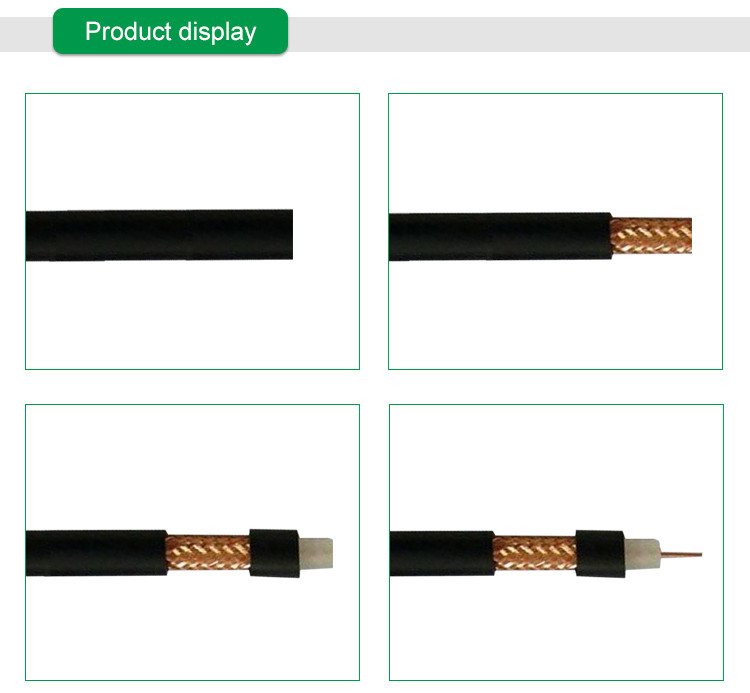

Construction
Center Conductor0.94mm Solid Copper
Dielectric2.80±0.02mm Solid PE
ShieldBonded AI Foil
Braid Coverage90% 36AWG(0.127mm)Tinned Copper
Jacket4.95±0.10mm PVC
Jacket Thickness
0.712mm
Characteristics
Sparket Test2500VAC
Dielectirc Strengthconductor to Siled : 3 sec @VDC
Impedance50±3OHM
Capactiance28.5±3pf/Ft(nom.)
Velorcity of Propagation88%
DCRConducter :7.6ohms/1000ft  shield:4.90ohms/1000ft
Aenttenuation
Attenuation
[@68o F. (20o C.)]
Frequency (MHz)
Nom. (dB/100 ft.)
302.00
502.60
1504.40
2205.40
4507.80
90011.10
150014.50
180016.00
250019.00
