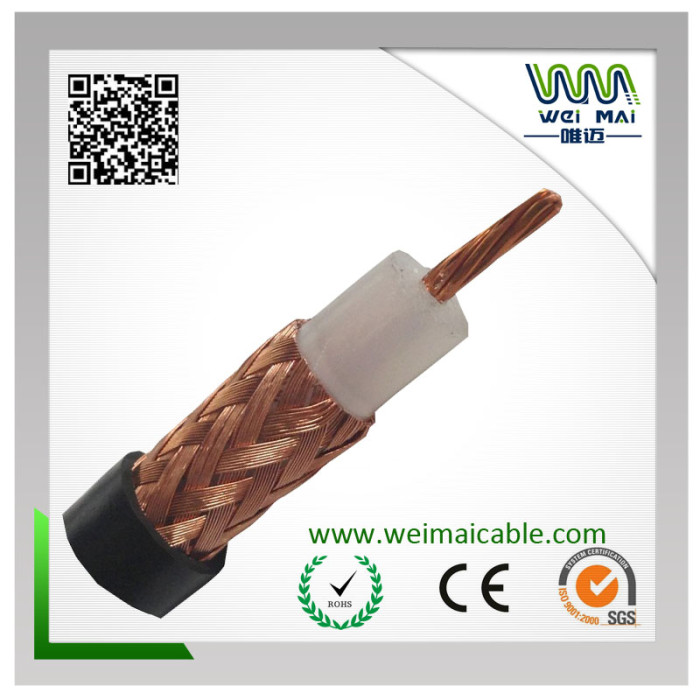

Coaxial Cable RG213 50ohm
| Categories | RG213 cable |
|---|---|
| Brand | WEIMAI CABLE |
| Model | WMRG21301 |
| Place of Origin | Zhejiang,China(Mainland) |
| Brand Name | WEIMAI |
| Conductor Material | CCS/CCA/Solid Copper |
| Insulation Material | PE |
| Braid Density | 40%-90% |
| 1st shield | Bonded Foil |
| 2st shield | Braided Shield |
| Jacket | PVC |
| Unit Price | US $ 0.1 / meter |
| FOB port | Shanghai/Ningbo |
| Terms of Payment | L/C, D/P, T/T, Discuss |
| Download DOC |  |
| Update Time | May 9,2024 |
Detail Information
Coaxial Cable China Manufacturer Supplier
Coaxial Cable RG213 50ohm
Impedance:50±3Ohm Capacitance:30.8±3pF/Ft(Nom.) Velocity of Propagain:66%
SRL:15dB(10 to 300 MHz) Swept Tested FOB Pront :ShangHai/NingBo
| 1)Construction |
| Center Conductor: | 13AWG （2.63mm）7X0.75Solid Copper |
| Dielectric: | 7.24±0.02mm Solid PE |
| Braid Coverage: | 96%:34AWG(0.16mm) Copper |
| Jacket: | 10.30±0.10mm PVC |
| Jacket Thickness: | 1.10mm |
| 2)Charactruction |
| Sparker Test: | 4000AVC |
| Dielectric Strength | Conductor to shield:10000DVC |
| Impedance: | 50±3OHM |
| Capacitance: | 30.8±pf/ft(Nom). |
| Velocity of propagation: | 66% |
| DCR: | Conductor:2.00 ohms/1000ft |
| SRL： | 15dB(10 to 300Mhz) swept Tested |
| 3)Attenuation |
| Attenuation | {68°f.(20℃.）} |
| Frequency(MHz) | Nom.(dB/100ft.) |
| 100 | 2.20 |
| 400 | 4.60 |
| 1000 | 6.00 |
