RG213 Coaxial Cable
| Categories | RG213 cable |
|---|---|
| Brand | WEIMAI CABLE |
| Download |  |
| Update Time | May 1,2025 |
Detail Information
Coaxial Cable China Manufacturer Supplier Made in China

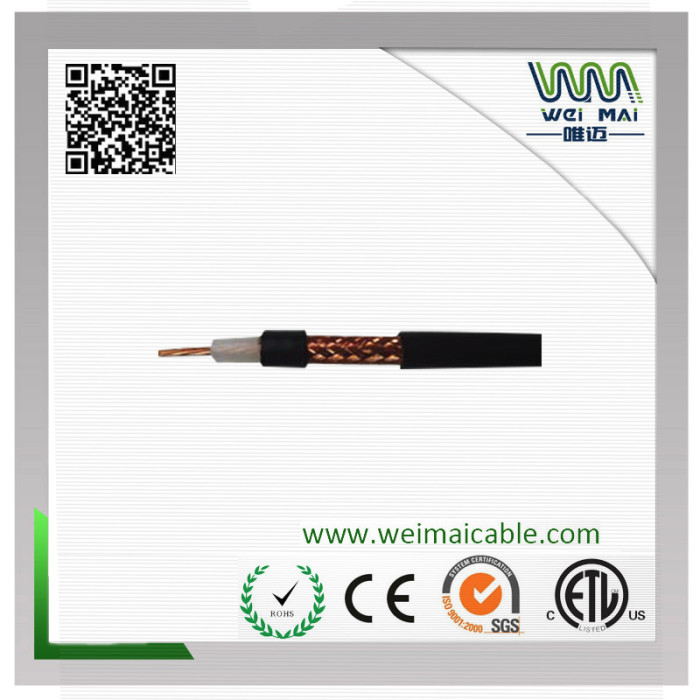

RG213 Coaxial Cable
Impedance:50±3Ohm Capacitance:30.8±3pF/Ft Velocity of Propagain:66% FOB Pront :ShangHai/NingBo
| 1) Construction |
|---|
| Center Conductor: | 13 AWG (2.63mm) 7X0.75 Solid Copper |
|---|---|
| Dielectric: | 7.24+0.02mm Solid PE |
| Braid Coverage: | 96%: 34 AWG (0.16mm) Copper |
| Jacket: | 10.30+0.10mm PVC |
| Jacket Thickness: | 1.10mm |
| 2) Characteristics |
|---|
| Sparker Test: | 4000VAC |
|---|---|
| Dielectric Strength: | Conductor to Shield :10000 VDC |
| Impedance: | 50+3Ohm |
| Capacitance: | 30.8+3pF/Ft (Nom.) |
| Velocity of Propagation: | 66.0% |
| DCR: | Conductor: 2.00 ohms/1000Ft |
| SRL: | 15dB (10 to 300 MHz) Swept Tested |
| 3) Attenuation |
|---|
| Attenuation | [@68o F. (20o C.)] |
|---|---|
| Frequency (MHz) | Nom.(dB/100 ft.) |
| 100 | 2.20 |
| 400 | 4.60 |
| 1000 | 9.0 |
