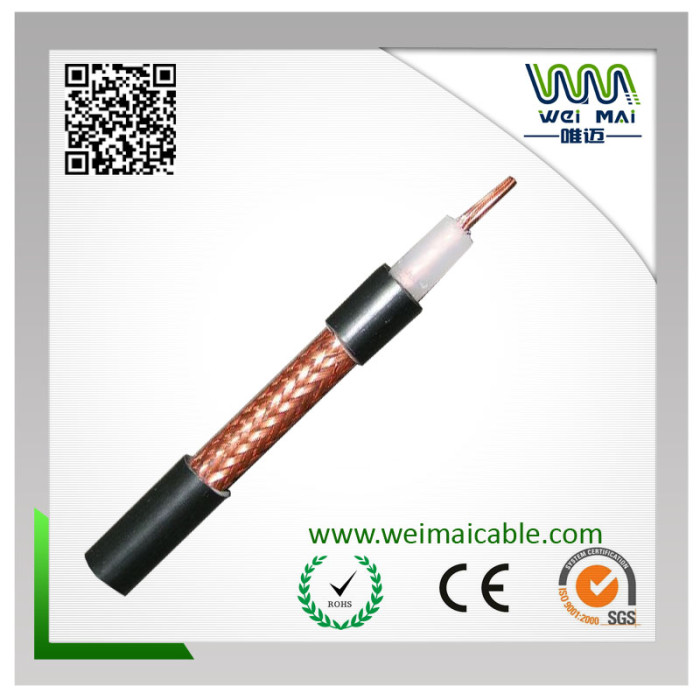

Coaxial Cable RG214 50ohm
| Categories | RG214 cable |
|---|---|
| Brand | WEIMAI CABLE |
| Model | WMRG21401 |
| Place of Origin | Zhejiang,China(Mainland) |
| Brand Name | WEIMAI |
| Conductor Material | CCS/CCA/Solid Copper |
| Insulation Material | PE |
| Braid Density | 40%-90% |
| 1st shield | Bonded Foil |
| 2st shield | Braided Shield |
| Jacket | PVC |
| Unit Price | US $ 0.15 / meter |
| FOB port | Shanghai/Ningbo |
| Terms of Payment | L/C, D/P, T/T, Discuss |
| Download |  |
| Update Time | May 1,2025 |
Detail Information
Coaxial Cable China Manufacturer Supplier
Coaxial Cable RG214 50ohm
Impedance:50±3Ohm Capacitance:100±3pf/ft(Nom.)
Velocity of Propagain:66% FOB Pront :ShangHai/NingBo

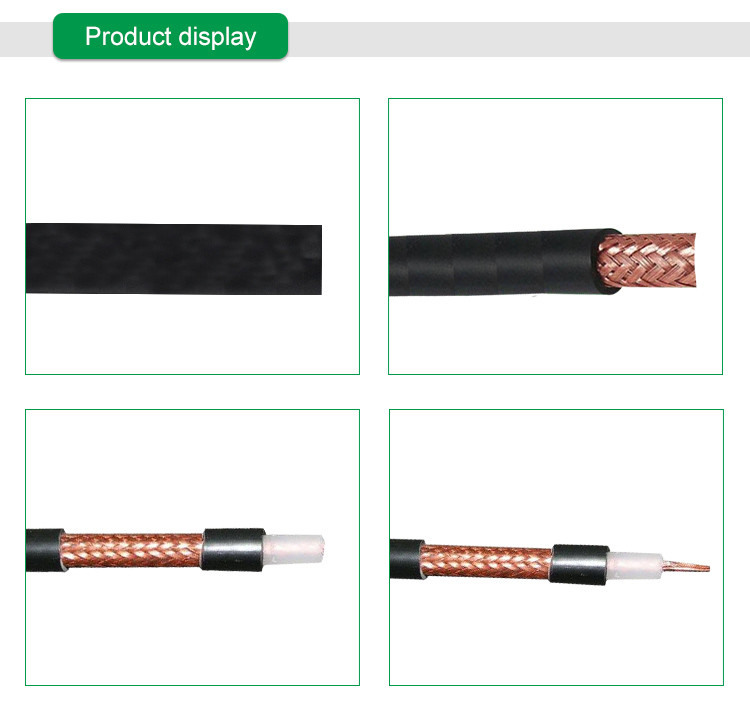

| 1) Construction |
|---|
| Center Conductor | 7x0.75 Solid Coppr |
|---|---|
| Dielectric | 7.25+0.02mmSolid PE |
| Braid Coverage | 96%：0.16mm Coppr/TC 98%：0.16mm Coppr/TC |
| Jacket | 10.50+0.10mmPVC |
| Jacket Thickness | 1.1mm |
| Characteristics |
|---|
| Sparker Test: | 4000AVC |
|---|---|
| Dielectric Strength | Conductor to shield:1000DVC |
| Impedance: | 50±3OHM |
| Capacitance: | 100±3pf/ft(Nom). |
| Velocity of propagation | 66% |
| DCR: | Conductor:2.00 ohms/1000ft |
| SRL： | 15dB(10 to 300Mhz) swept Tested |
| Attenuation |
|---|
| Attenuation | {68°f.(20℃.）} |
|---|---|
| Frequency(MHz) | Nom.(dB/100ft.) |
| 0.05 | 5.2 |
| 0.10 | 7.6 |
| 0.20 | 11.0 |
| 0.40 | 16.3 |
| 0.50 | 18.5 |
| 0.60 | 20.6 |
| 0.86 | 25.6 |
| 0.10 | 28.0 |
