RG214 Coaxial Cable
| Categories | RG214 cable |
|---|---|
| Brand | WEIMAI CABLE |
| Download DOC |  |
| Update Time | Apr 20,2024 |
Detail Information
Coaxial Cable China Manufacturer Supplier Made in China

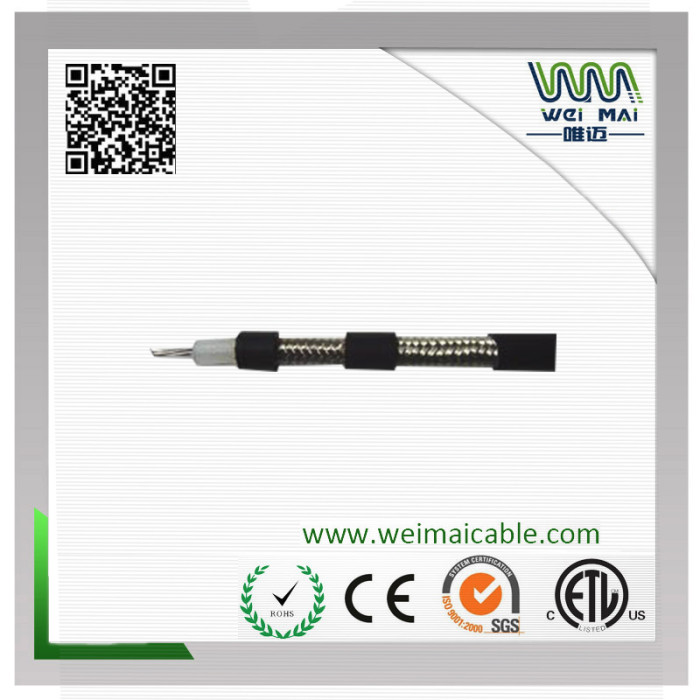

RG214 Coaxial Cable
Impedance:50±3Ohm Capacitance:100±3F/Ft(Nom.) DCR :VHF.50-3000MHz>23 FOB Pront :ShangHai/NingBo
| 1) Construction |
| Center Conductor: | 7X0.75 Solid Copper |
| Dielectric: | 7.25+0.02mm Solid PE |
| Braid Coverage: | 96%: 0.16mm Copper/TC 98%: 0.16mm Copper/TC |
| Jacket: | 10.50+0.10mm PVC |
| Jacket Thickness: | 1.10mm |
| 2) Characteristics |
| Sparker Test: | 4000VAC |
| Dielectric Strength: | Conductor to Shield :10000 VDC |
| Impedance: | 50+3Ohm |
| Capacitance: | 100+3pF/Ft (Nom.) |
| Velocity of Propagation: | 66.0% |
| DCR: | Conductor: 6.0 ohms/1000Ft |
| SRL: | 15dB (10 to 300 MHz) Swept Tested |
| 3) Attenuation |
| Attenuation | [@68o F. (20o C.)] |
| Frequency (GHz) | Nom.(dB/100 ft.) |
| 0.05 | 5.2 |
| 0.10 | 7.6 |
| 0.20 | 11.0 |
| 0.40 | 16.3 |
| 0.50 | 18.5 |
| 0.60 | 20.6 |
| 0.86 | 25.6 |
| 1.00 | 28. |
