Coaxial Cable RG174 50ohm china manufacturer supplier
| Categories | RG174 cable |
|---|---|
| Brand | WEIMAI CABLE |
| Model | WMRG17401 |
| Place of Origin | Zhejiang,China(Mainland) |
| Brand Name | WEIMAI |
| Conductor Material | CCS/CCA/Solid Copper |
| Insulation Material | PE |
| Braid Density | 40%-90% |
| 1st shield | Bonded Foil |
| 2st shield | Braided Shield |
| Jacket | PVC |
| Unit Price | US $ 0.15 / meter |
| FOB port | Shanghai/Ningbo |
| Terms of Payment | L/C, D/P, T/T, Discuss |
| Download DOC |  |
| Update Time | Apr 27,2024 |
Detail Information
Coaxial Cable China Manufacturer Supplier

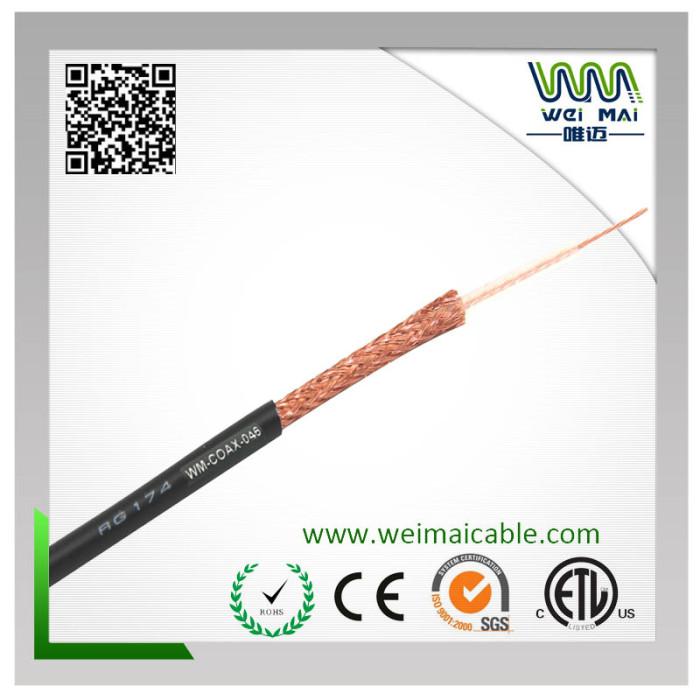

Coaxial Cable RG174 99% Braiding 50 ohm
Impedance:50±3Ohm Capacitance:100pF/m (Nom.) Velocity of Propagain:66%
SRL:50- 300 MHz ＞23 300- 1000 MHz ＞21 FOB Pront :ShangHai/NingBo

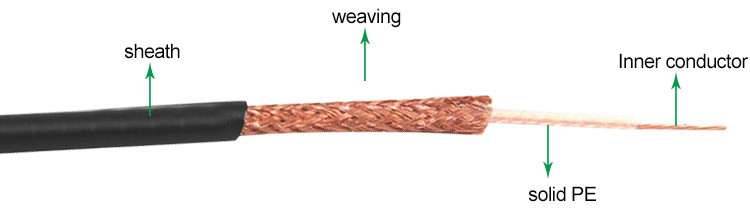

| 1) Construction |
| Center Conductor: | 7X0.16mm Bare Copper |
| Dielectric: | 1.90mm Solid PE |
| Braid Coverage: | 16X6X0.12mm Bare Copper 99% Coverage |
| Jacket: | 2.7+0.10mm PVC |
| Jacket Thickness: | 0.5mm |
| 2) Characteristics |
| Sparker Test: | 3000VAC |
| Impedance: | 50+2Ohm |
| Capacitance: | 100pF/m (Nom.) |
| Velocity of Propagation: | 66.0% |
| SRL: | 50- 300 MHz ＞23 300- 1000 MHz ＞21 |
| 3) Attenuation |
| Attenuation | [@68o F. (20o C.)] |
| Frequency (MHz) | Nom.(dB/100 ft.) |
| 10 | 2.99 |
| 100 | 9.50 |
| 400 | 22.57 |
| 1000 | 36.60 |
| 2000 | 51.85 |
| 3000 | 64.05 |
|
|  | ||||
