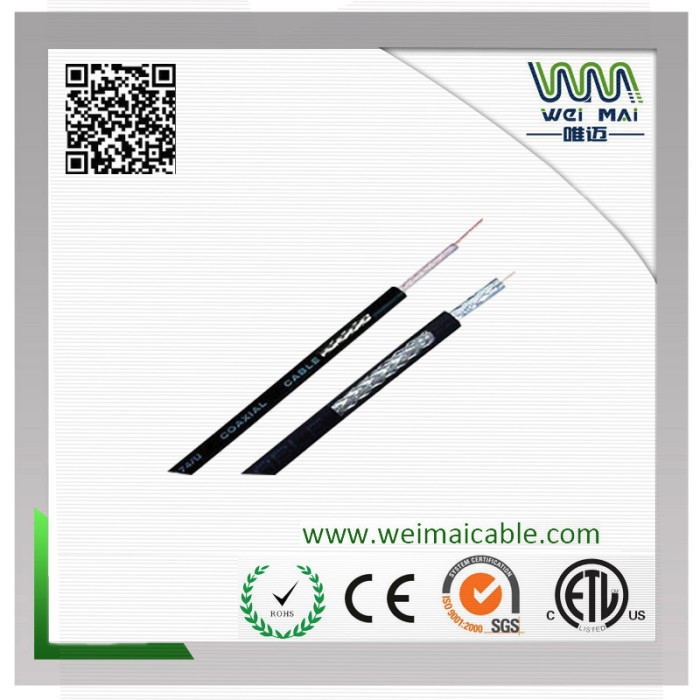

RG174 Coaxial Cable

 Impedance:50±20Ohm                                                     Capacitance:100F/m(Nom)                                       SRL:VHF.50-3000MHz>23                                            FOB Pront :ShangHai/NingBo


RG174 Coaxial Cable
1) Construction
Center Conductor:7X0.16 BC/CCS
Dielectric:1.90mm Solid PE
Braid Coverage:90% TC
Jacket:2.7+0.10mm PVC
Jacket Thickness:0.5mm
2) Characteristics
Sparker Test:3000VAC
Impedance:50+2Ohm
Capacitance:100pF/m (Nom.)
Velocity of Propagation:                             66.0%
SRL:50- 300 MHz >23  300- 1000 MHz >21
3) Attenuation

Attenuation[@68o F. (20o C.)]
Frequency (MHz)Nom.(dB/100 ft.)
102.99
1009.50
40022.57
100036.60
200051.85
300064.05
