Alarm cable
| Categories | Alarm Cable |
|---|---|
| Brand | WEIMAI CABLE |
| FOB port | Ningbo/ Shanghai |
| Terms of Payment | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Download |  |
| Update Time | May 1,2025 |
Detail Information
China Manufacturer Supplier Made in China

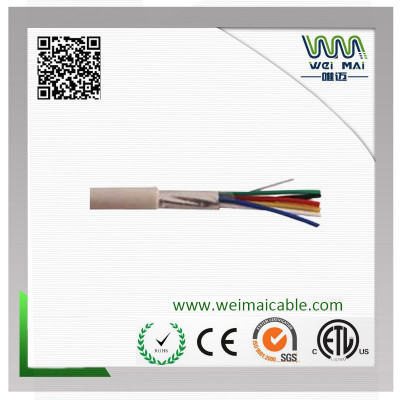

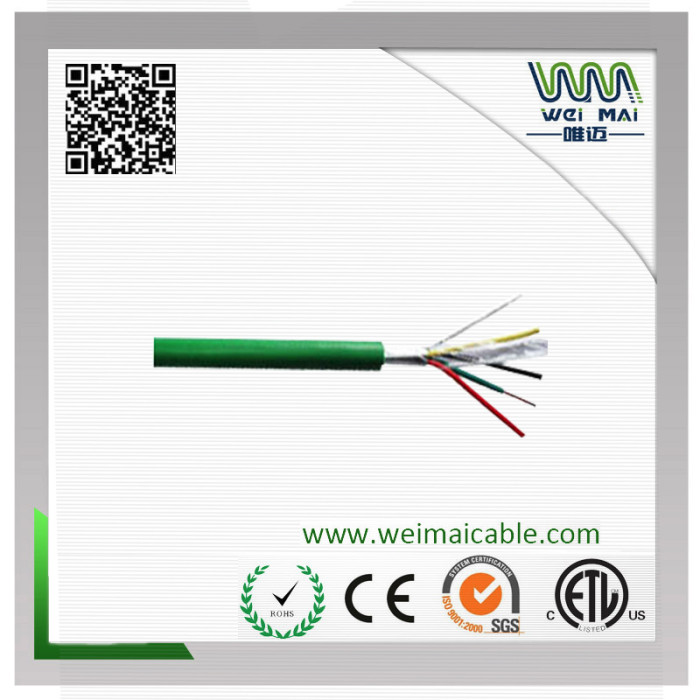

Alarm cable

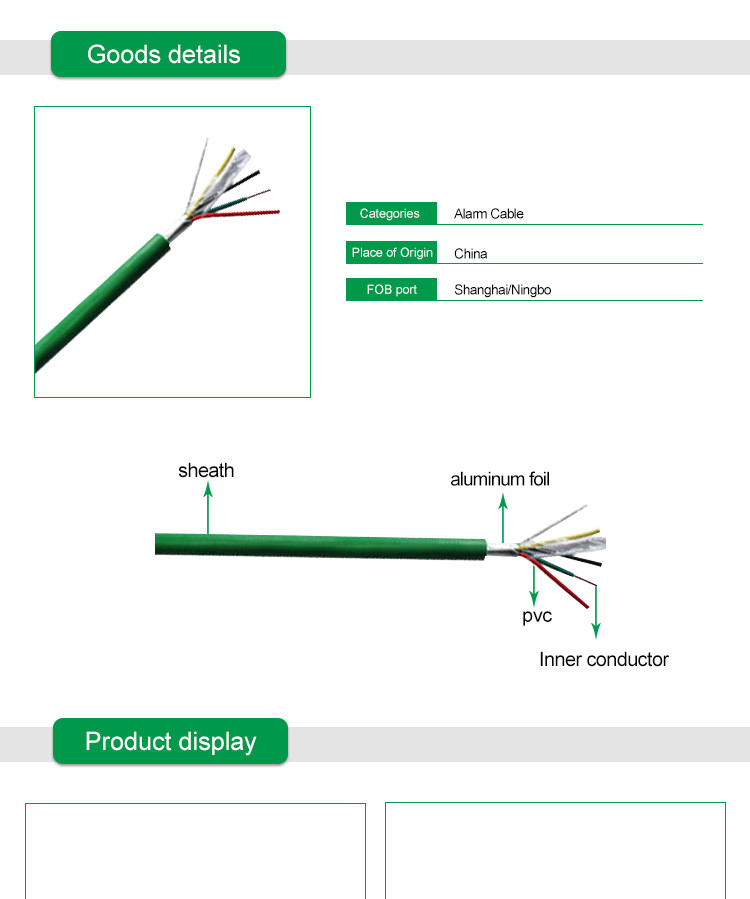

| Description: |
|---|
| 1)Structure: unshielded, shield |
| a> Conductor : CCA (TC,BC,TCCA are available) |
| b> Cable core: 2C, 4C, 6C, 8C, 10C, 12C, 14C, 16C, 20C |
| c> Insulation: PVC |
| d> rip cord : yes |
| e> Shield: Al/foil |
| f> Drain wire: no |
| g> Jecket : PVC |
| 2)Application: |
| These cables are used for installation in signaling and alarm system. |
| This is suitable for the connection of contacts, detectors and sensors, |
| infra-red as well as micro wave or mixed technology systems to the switch board |
|---|
| 3)Standard packing: |
| 100m/rolll, 100m/box ; 100m/plastic spool; 300m/wooden spool . |
| Item No. | Decription | ConductorSpec. | nsulatioon | Jacket | Packing | ||
|---|---|---|---|---|---|---|---|
| Nom.Thick(mm) | Nom.Diam(mm) | Nom.Thick(mm) | Nom.Diam.(mm) | ||||
| ALARM CABLE | TC/BC/CCA/TCCA | 2*7*0.2 | 0.22 | 1.05 | 0.45 | 3.1 | Box |
| Screened | 4*7*0.2 | 0.22 | 1.05 | 0.45 | 3.4 | Coil | |
| Unscreened | 6*7*0.2 | 0.22 | 1.05 | 0.5 | 4.1 | Drum | |
| Rip cord or No | 8*7*0.2 | 0.22 | 1.05 | 0.5 | 4.5 | Paper reel | |
| Drain wire or No | 10*7*0.2 | 0.22 | 1.05 | 0.6 | 5.1 | Plastic reel | |
| 12*7*0.2 | 0.22 | 1.05 | 0.6 | 5.5 | Wooden reel | ||
| 14*7*0.2 | 0.22 | 1.05 | 0.7 | 6.1 | |||
| 16*7*0.2 | 0.22 | 1.05 | 0.7 | 6.4 | |||
| 20*7*0.2 | 0.22 | 1.05 | 0.8 | 7.2 |
