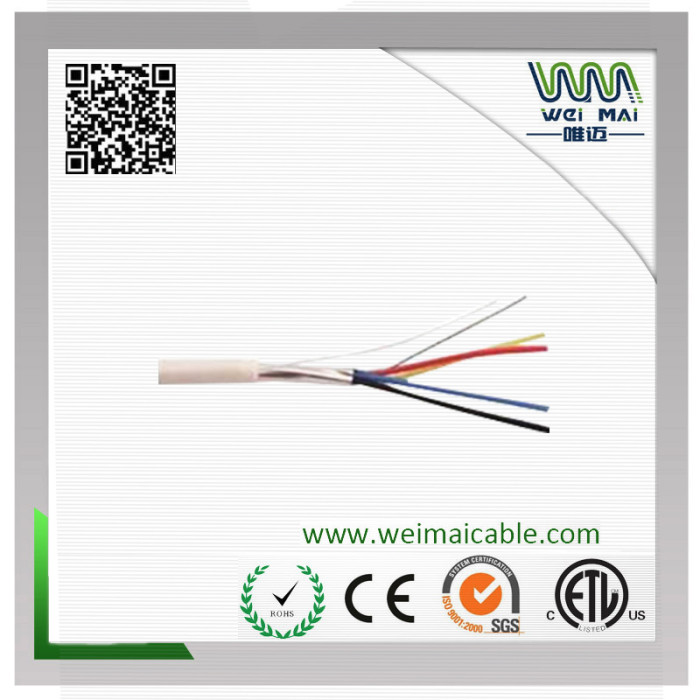

Alarm Cable Shielded 4×0.5mm Cores
Detail Information
China Manufacturer Supplier Made in China
Alarm Cable Shielded 4×0.5mm Cores
Description: |
1)Structure: shield |
Center conductor | 4×0.5mm Solid Bare Copper |
Dielectric | PVC |
Drain wire | 0.5mm Solid Tinned Copper |
Foil shield | Al/PE Foil Shield |
Rip cord | Rip Cord |
Outer jacket | PVC |
Item No. | Decription | ConductorSpec. | nsulatioon | Jacket | Packing | ||
Nom.Thick(mm) | Nom.Diam(mm) | Nom.Thick(mm) | Nom.Diam.(mm) | ||||
ALARM CABLE | TC/BC/CCA/TCCA | 2*7*0.2 | 0.22 | 1.05 | 0.45 | 3.1 | Box |
Screened | 4*7*0.2 | 0.22 | 1.05 | 0.45 | 3.4 | Coil | |
Unscreened | 6*7*0.2 | 0.22 | 1.05 | 0.5 | 4.1 | Drum | |
Rip cord or No | 8*7*0.2 | 0.22 | 1.05 | 0.5 | 4.5 | Paper reel | |
Drain wire or No | 10*7*0.2 | 0.22 | 1.05 | 0.6 | 5.1 | Plastic reel | |
12*7*0.2 | 0.22 | 1.05 | 0.6 | 5.5 | Wooden reel | ||
14*7*0.2 | 0.22 | 1.05 | 0.7 | 6.1 | |||
16*7*0.2 | 0.22 | 1.05 | 0.7 | 6.4 | |||
20*7*0.2 | 0.22 | 1.05 | 0.8 | 7.2 |
