8D-FB China Manufacturer Supplier Made in China Alarm cable
8D-FB China Manufacturer Supplier Made in China Alarm cable
| Categories | XD-FB Series |
|---|---|
| Brand | WEIMAI CABLE |
| Download |  |
| Update Time | May 1,2025 |
Detail Information
Coaxial Cable China Manufacturer Supplier Made in China

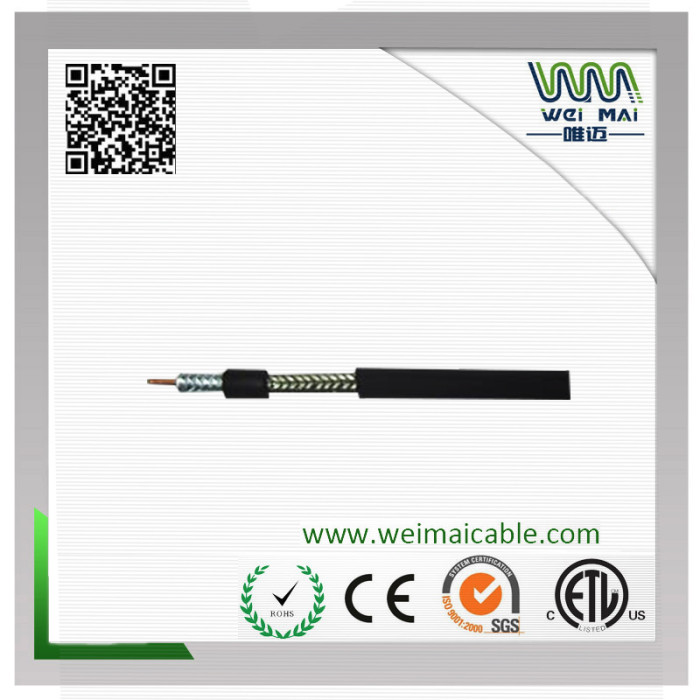

8D-FB China Manufacturer Supplier Made in China Alarm cable
Impedance:50±20Ohm Capacitance:80±3nf/Ft(Nom) Echo Loss:VHF.20db/UHF18db FOB Pront :ShangHai/NingBo
| 8D-FB Coaxial Cable |
|---|
| 1) Construction |
| Center Conductor: | 2.80mm Solid Copper |
|---|---|
| Dielectric: | 5.80+0.02mm Foam PE |
| Shield: | Bonded Al Foil |
| Braid Coverage: | 85%TC |
| Jacket: | 8.80+0.10mm PVC |
| Jacket Thickness: | 0.80mm |
| 2) Characteristics |
|---|
| Inner Conductor Resistance: | 2.86 ohm/km |
|---|---|
| Dielectric Withstand Voltage: | 1000 ACV/min |
| Impedance: | 50+2Ohm |
| Capacitance: | 85+3nF/Ft (Nom.) |
| Echo Loss: | VHF: 20 dB/ UHF 18 dB |
| 3) Attenuation |
|---|
| Attenuation | [@68o F. (20o C.)] |
|---|---|
| Frequency (MHz) | Nom.(dB/100 ft.) |
| 50 | 3.00 |
| 100 | 4.07 |
| 200 | 5.65 |
| 400 | 8.29 |
| 900 | 13.00 |
| 1000 | 13.70 |
| 1500 | 18.30 |
| 2000 | 22.30 |
