11VAtC/PAtC/VRtC
| Categories | European Standard |
|---|---|
| Brand | WEIMAI CABLE |
| Download DOC |  |
| Update Time | Apr 19,2024 |
Detail Information
Coaxial Cable China Manufacturer Supplier Made in China

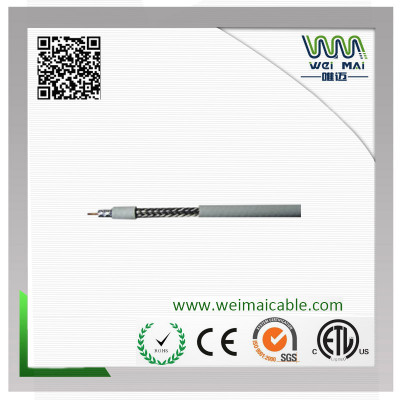

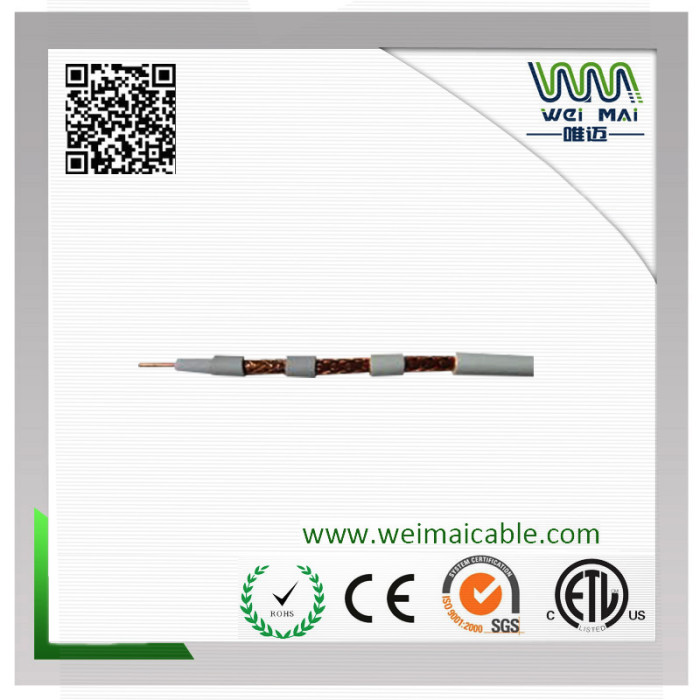

11VAtC/PAtC/VRtC
Impedance:75±3Ohm Capacitance:50±3nf/km
Velocity of Propagain:85% FOB Pront :ShangHai/NingBo
| 1) Construction |
| Center Conductor: | 1.70+0.01mm Solid Copper/Copper Clad Steel |
| Dielectric: | 7.00+0.05mmFoam PE |
| Shield: | Copper Tape/Al Foil |
| Braid Coverage: | 45%-90% TC |
| Jacket: | 10.30+0.05mm PVC / PE |
| Generic Standard: | EN50117-1 |
| Sectional Standard: | EN50117-5 |
| 2) Characteristics |
| Impedance: | 75+3 Ohm |
| Capacitance: | 50+3pF/km |
| Velocity of Propagation: | 85% |
| Conductor resistance Max: | Inner:7.8 ohms/km Outer:7.6 ohms/km |
| Return Loss: | 20dB min (5-2150MHz) |
| 3) Attenuation |
| Attenuation | [@68o F. (20o C.)] |
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
| 5 | 0.24 | 0.9 |
| 50 | 0.82 | 2.7 |
| 100 | 1.15 | 3.8 |
| 200 | 1.64 | 5.4 |
| 400 | 2.34 | 7.7 |
| 500 | 2.56 | 8.4 |
| 800 | 3.35 | 11.0 |
| 950 | 3.69 | 12.1 |
| 1000 | 3.78 | 12.4 |
| 1350 | 4.79 | 15.7 |
| 1750 | 5.40 | 17.7 |
| 2150 | 6.07 | 19.9 |
