17VAtC/PAtC/VRtC
| Categories | European Standard |
|---|---|
| Brand | WEIMAI CABLE |
| Download |  |
| Update Time | May 1,2025 |
Detail Information

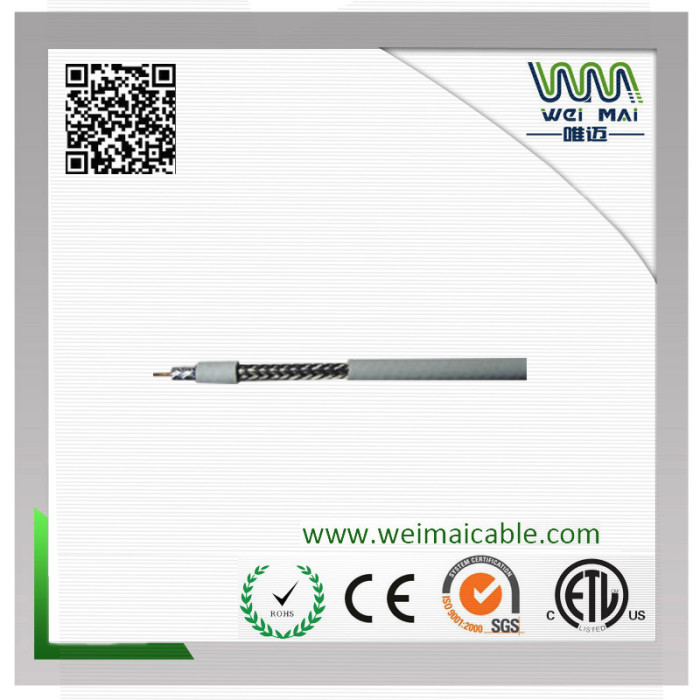

Coaxial Cable China Manufacturer Supplier Made in China
17VAtC/PAtC/VRtC
Impedance:75±3Ohm Capacitance:50±3nf/km
Velocity of Propagain:85% FOB Pront :ShangHai/NingBo
| 1) Construction |
|---|
| Center Conductor: | 1.13+0.01mm Solid Copper |
|---|---|
| Dielectric: | 4.85+0.05mmFoam PE |
| Shield: | Al Foil/Cu Foil |
| Braid Coverage: | 35%-90% BC |
| Jacket: | 6.80+0.05mm PVC /PE |
| Generic Standard: | EN50117-1 |
| Sectional Standard: | EN50117-5 |
| 2) Characteristics |
|---|
| Impedance: | 75+3 Ohm |
|---|---|
| Capacitance: | 50+3pF/km |
| Velocity of Propagation: | 85% |
| Conductor resistance Max: | Inner:16.8 ohms/km Outer:26 ohms/km |
| Return Loss: | 20dB min (5-2150MHz) |
| 3) Attenuation |
|---|
| Attenuation | [@68o F. (20o C.)] |
|---|
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
|---|---|---|
| 5 | 0.46 | 1.5 |
| 50 | 1.13 | 4.3 |
| 100 | 1.80 | 5.9 |
| 200 | 2.56 | 8.4 |
| 400 | 3.66 | 12.0 |
| 800 | 5.34 | 17.5 |
| 862 | 5.58 | 18.3 |
| 950 | 5.86 | 19.2 |
| 1350 | 7.11 | 23.3 |
| 1750 | 8.24 | 27.0 |
| 2150 | 9.33 | 30.6 |
| 3000 | 11.22 | 36.8 |
