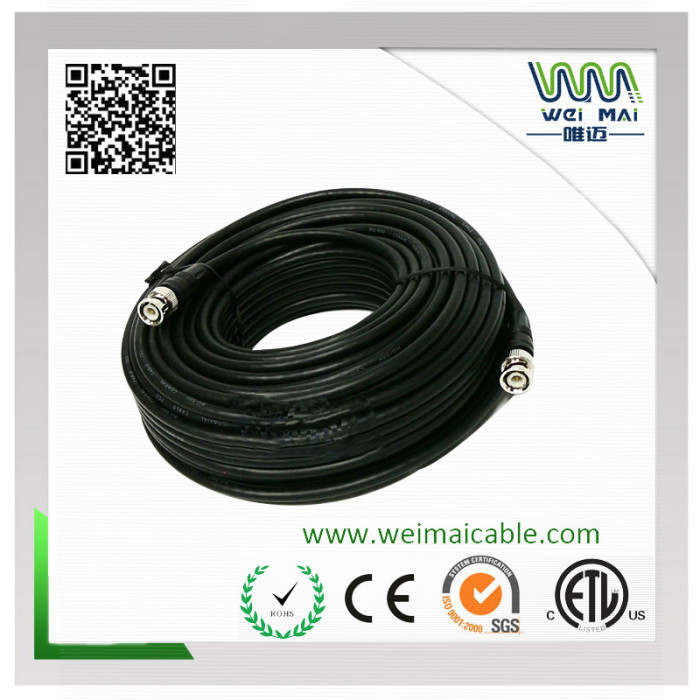

RG59 Coaxial Cable wm00024p
| Categories | Ungrouped |
|---|---|
| Brand | WEIMAI CABLE |
| Model | RG59 |
| Type | Coaxial |
| Number of Conductors | 1 |
| color1 | black |
| color2 | white |
| Download DOC |  |
| Update Time | Apr 28,2024 |
Detail Information
Coaxial Cable China Manufacturer Supplier Made in China
RG59 Coaxial Cable wm00024p
| 1) Construction |
| Center Conductor: | 0.81+0.01mmSolid Copper/Copper Clad Steel |
| Dielectric: | 3.66+0.05mmFoam PE/Solid PE |
| Shield: | Al Foil/Bonded Al Foil |
| Braid Coverage: | 40%-95% Al/BC |
| Jacket: | 6.10+0.10mmPVC |
| Nom. Thick | 0.80mm |
| Jelly/APD: | Per Customers Special Requirement |
| 2) Characteristics |
| Impedance: | 75+3 Ohm |
| Capacitance: | 54+3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300MHz) |
| 3) Attenuation |
| Attenuation | [@68o F. (20o C.)] |
| Frequency (MHz) | Max. (dB/100 ft.) | Frequency (MHz) | Max. (dB/100 ft.) |
| 5 | 0.86 | 400 | 5.10 |
| 55 | 2.05 | 450 | 5.40 |
| 83 | 2.45 | 500 | 5.70 |
| 187 | 3.60 | 550 | 5.95 |
| 211 | 3.80 | 600 | 6.20 |
| 250 | 4.10 | 750 | 6.97 |
| 300 | 4.45 | 865 | 7.52 |
| 350 | 4.80 | 1000 | 8.12 |
