RG59 Coaxial Cable wm00074p

Categories	Ungrouped
Brand	WEIMAI CABLE
Model	RG59
Type	Coaxial
Number of Conductors	1
color1	black
color2	white
Download
Update Time	May 1,2025

Contact Now

Detail Information

Coaxial Cable China Manufacturer Supplier Made in China

RG59 Coaxial Cable wm00074p

Impedance:75±3Ohm Capacitance:54±3pF/m

Velocity of Propagain:85% FOB Pront :ShangHai/NingBo

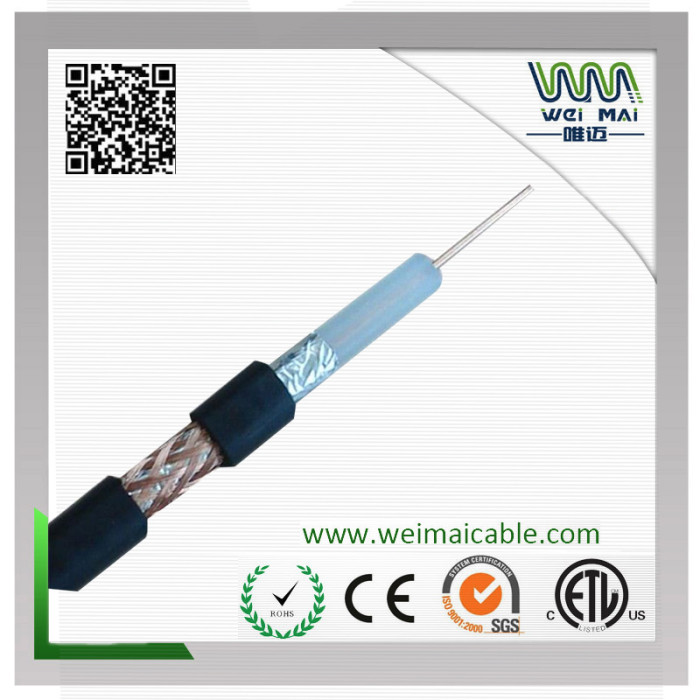

1) Construction

Center Conductor:	0.81+0.01mmSolid Copper/Copper Clad Steel
Dielectric:	3.66+0.05mmFoam PE/Solid PE
Shield:	Al Foil/Bonded Al Foil
Braid Coverage:	40%-95% Al/BC
Jacket:	6.10+0.10mmPVC
Nom. Thick	0.80mm
Jelly/APD:	Per Customers Special Requirement

2) Characteristics

Impedance:	75+3 Ohm
Capacitance:	54+3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300MHz)

3) Attenuation

Attenuation

[@68^o F. (20^o C.)]

Frequency (MHz)	Max. (dB/100 ft.)	Frequency (MHz)	Max. (dB/100 ft.)
5	0.86	400	5.10
55	2.05	450	5.40
83	2.45	500	5.70
187	3.60	550	5.95
211	3.80	600	6.20
250	4.10	750	6.97
300	4.45	865	7.52
350	4.80	1000	8.12
