F/UTP CAT5E
| Categories | Ethernet Cable |
|---|---|
| Brand | WEIMAI CABLE |
| Update Time | May 1,2025 |
Detail Information

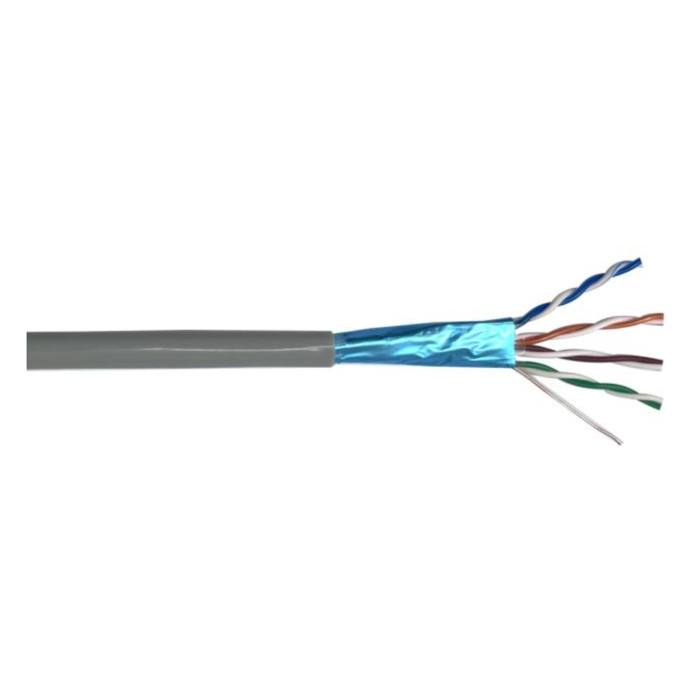

F/UTP Shielded CAT5E Twisted Pair Installation Cable
Standard:
YD-T1019-2013
ANSI/TIA568.2-D-2018
ISO/IEC 11801-2017
Application:
Suitable for structured premises cabling.
For transmission of digital and analogue voice and data signals.
Especially suitable for all calss EA applications.
ISDN,Ethernet 10Base-T, Fast Ethernet 100 Base-T.Gigabit Ethernet 1000 Base-t,10G Base-T.
TPPMD/TP/DDI125Mbit/s,ATM155Mbit/s
Specifications | ||||||
Conductor | Structure | Single Core | ||||
Material | Copper | |||||
Wire gauge | 24AWG | |||||
Dielectric | Dielectric | 1.02±0.10mm | ||||
Material | HDPE | |||||
Color Identify | Colored Stripe | |||||
Shield method | F/UTP | |||||
Shield material | Aluminum foil | |||||
Drain wire | 24AWG | |||||
Rip wire | 150D polyester straight-dragged | |||||
Jacket | Sheath material | PVC/LSZH | ||||
Cable O.D | 6.0±0.2mm | |||||
Jacket tjickness | 0.50±0.1mm | |||||
Print words | OEM | |||||
Package | Pull Box | |||||
Electrical properties | ||||||
Characteristic Impedance | 1-100MHZ | 100±15Ω | ||||
Single conductor DC resistance | ≤9.5Ω/100M | |||||
The line-to internal DC resistance is unbalanced | ≤2.0% | |||||
Dielectric strength between DC conductors | 1000V,1min No breakdown | |||||
Propagation delay difference | ≤45ns/100m | |||||
Propagation delay | ≤536ns/100m | |||||
Operation capacitance | ≤5.6nF/100m | |||||
Rated transmission rate (NVP) | 68% | |||||
Insulation resistance | ≥5000MΩ km DC(100-500)V | |||||
Installation temperatute | 0℃~+60℃ | |||||
Use and storage temperature | -20℃+60℃ | |||||
Performance Parameter | ||||||
Frequency | Attenuation (dB/100m) (Max) | Return loss(dB) (Min) | Next(dB) (Min) | PSNEXT(dB)
(Min) | ACR-F (dB/100m) (Min) | PSACR-F (dB/100m)
(Min) |
(MH)z | (dB) | (dB/100m) | (ns/100m) | (ns/100m) | (dB) | (dB) |
1 | 2 | 20 | 65.3 | 62.3 | 63.8 | 60.8 |
4 | 4.1 | 23 | 56.3 | 53.3 | 51.8 | 48.8 |
8 | 5.8 | 24.5 | 51.8 | 48.8 | 45.7 | 42.7 |
10 | 6.5 | 25 | 50.3 | 47.3 | 43.8 | 40.8 |
16 | 8.2 | 25 | 47.2 | 44.2 | 39.7 | 36.7 |
20 | 9.3 | 25 | 45.8 | 42.8 | 37.8 | 34.8 |
31.25 | 11.7 | 23.6 | 42.9 | 39.9 | 33.9 | 30.9 |
62.5 | 17 | 21.5 | 38.4 | 35.4 | 27.9 | 24.9 |
100 | 22 | 20.1 | 35.3 | 32.3 | 23.8 | 20.8 |
