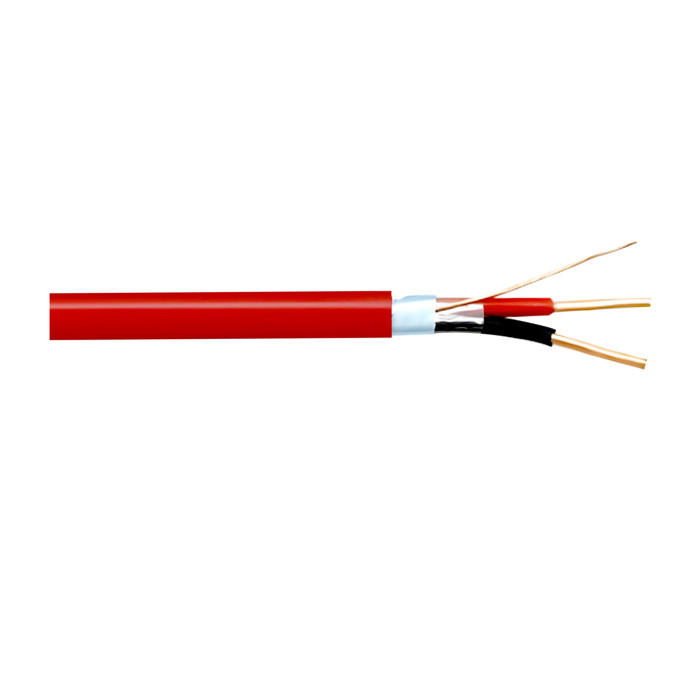

Fire Alarm Cable
| Categories | Fire Alarm Cable |
|---|---|
| Brand | WEIMAI CABLE |
| Update Time | May 1,2025 |
Detail Information
Application
Fire alarm cables are suitable for high-rise office buildings,entertainment venues hotels,guesthoses and other buildings.They are used wiring of fire alarms,smoke detectors,voice communications,anti-theft alarms,and fire circuits protection.
Cable Structure | ||||
Good physical and mechanical properties | The tensile strength of insulation and sheath materials is greater than 10.3MPa,and the elongation at break of insulation and sheath materials is 100% greater | |||
Minimum bending radius | 10xD | |||
Working voltage | 300V | |||
Testing voltage | 1500V | |||
Operating temperature(optional) | 60℃,75℃,90℃,105℃ | |||
Environmental performance | RoHS 2.0 compliant | |||
Flame retardant performance(optional) | FPL,FPLR,FT1,FT4 | |||
Flame retardant time | 30 minutes,60 minutes,90 minutes,120 minutes | |||
Optional | Eco-friendly,Flame-retardant,Fire-resistant,Waterproof,Anti-ultraviolet,Armored | |||
Technical Parameter | ||||
Conductor | Bare copper,Tinner copper,Soild or Stranded | |||
Insulation | Flame-retardant PVC/PE | |||
Shielding | Drain wire+Aluminum foil wrapping | |||
Rip cord | Nylon | |||
Sheath | Flame-retardant PVC,Color optional | |||
Special use scenarios | Waterproof,Oil resistance,Armored,Compressive,Eco-friendly,and rodent resistance | |||
Technical Standard | ||||
Series number | Model | Approximate wire diameter | Cable weight kg/km | Reference standard |
1 | FPL 24AWG-12AWG | / | / | UL1424 |
2 | FPLR 24AWG-12AWG | / | / | |
3 | FT1 24AWG-12AWG | / | / | CSA C22.2 NO.208-14 |
4 | FT4 24AWG-12AWG | / | / | |
5 | PH30 0.5mm²-5mm² | / | / | EN50200 |
6 | PH60 0.5mm²-5mm² | / | / | |
7 | PH120 0.5mm²-5mm² | / | / | |
8 | CWZ 0.5mm²-5mm² | / | / | BS6387 |
9 | J-Y(St)Y 0.5mm²-5mm² | / | / | VDE 0815 |
