Fiber Optic Cable GJFJV-8B1

Fiber Optic Cable GJFJV-8B1
CategoriesFiber
AlbumView larger image
BrandWEIMAI CABLE
FOB portNingbo/ Shanghai
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Download DOC
Update Time2019-10-16
Detail Information

FIBER OPTICAL CABLE Indoor China Manufacturer factory GJFJV-8B1

Temperature:-20℃-60℃                                          Short-term high pressure:60N/100mm

long-termhigh pressure:15N/100mm                    FOB Pront :ShangHai/NingBo


1) Construction
Fiber Count    8core
Tight-buffered Fiber Diameter 850µm±50µm
Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow
Strength Member  Polyester yarn
Yellow PVC Outer Jacket         Outside diameter: 5.2mm±0.2mm

2)Product structure diagram

3)Parameters of fiber
Optical fiber typeUnit   SM G652SM G652D MM 50/125MM 62.5/125MM OM3-550
Wavebandnm1310/15501310/1550850/1300 850/1300850/1300
Attenuation  dB/k   0.36/0.230.36/0.233.0/1.03.0/1.03.0/1.0

4)Product parameters
PerformanceLong-termShort-term
Max. Tension(N)200                        600
Max. Crushing Resistance(N/100mm2)2001000
Min. Bending Radius                   20D(Dynamic 10D(Static)
torage and operating temperature-20℃-﹢70℃

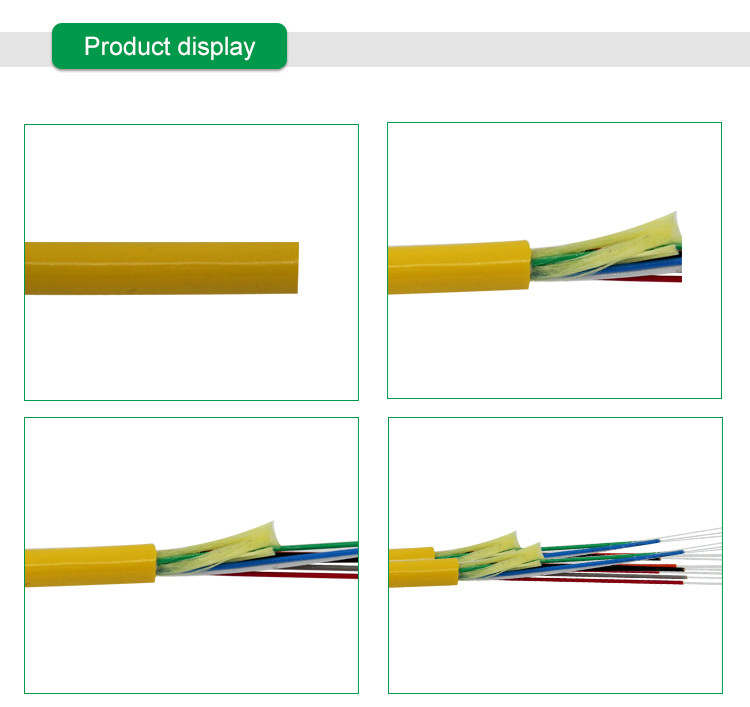

5)Appearance and packaging
 No damage on the surface; no trachoma.
Wooden tray packaging; wood whole seal packaging
Segment length: no less than 1000M. The segment length of each tray of the same batch shall be similar as much as possible. Other lengths can be agreed upon through consultation.
