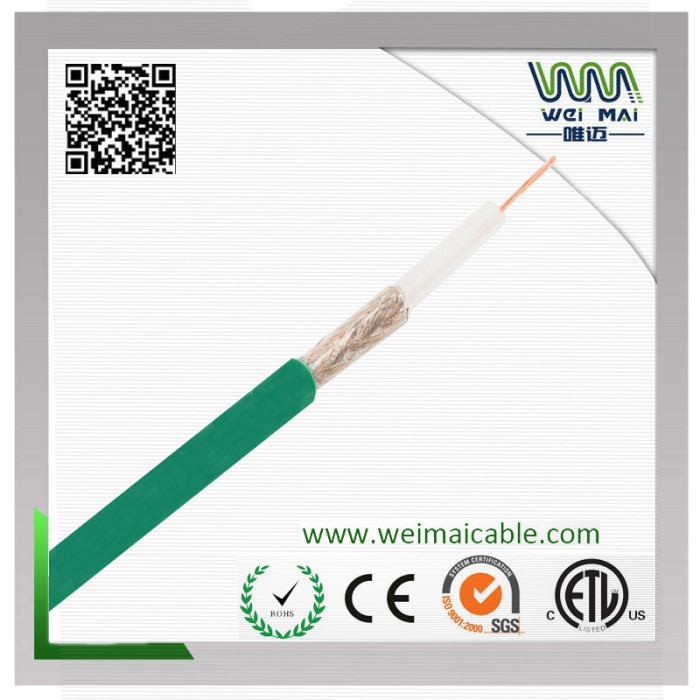

Coaxial Cable RG6 60% Braiding 75ohm
Coaxial Cable RG6 60% Braiding 75ohm
| Categories | Coaxial Cable RG6 75Ohm |
|---|---|
| Brand | WEIMAI CABLE |
| Model | WM-COAX-024 |
| Place of Origin | Zhejiang,China(Mainland) |
| Brand Name | WEIMAI |
| Conductor Material | CCS/CCA/Solid Copper |
| Insulation Material | PE |
| Braid Density | 90% |
| 1st shield | Bonded Foil |
| 2st shield | Braided Shield |
| Jacket | PVC |
| Unit Price | US $ 0.09 / meter |
| FOB port | Shanghai/Ningbo |
| Terms of Payment | L/C, D/P, T/T, Discuss |
| Download |  |
| Update Time | May 1,2025 |
Detail Information
coaxial cable china supplier manufacturer
Coaxial Cable RG6 60% Braiding 75ohm
| Construction |
|---|
| Center Conductor | 7*0.75mm Copper/CU |
|---|---|
| Dielectric | 7.24±0.05mm Solid PE |
| Braid Coverage | 128x0.15mm CU Briaibling 95% covercage |
| Jacket | 10.30±0.10mm PVC Black |
| Package | 100M/Roll 305M/Drum 1000ft/500ft/Pull Box |
| Characteristics |
|---|
| Sparket Test | 4000VAC |
|---|---|
| Impedance | 75±3OHM |
| Capactiance | 54±3pf/Ft(nom.) |
| Velorcity of Propagation | 85% |
| Return Loss | 20db min(5-2300MHz) |
| Aenttenuation |
|---|
| Attenuation | [@68o F. (20o C.)] |
|---|
| Frequency (MHz) | Nom. (dB/100 ft.) | Nom. (dB/100m.) |
|---|
| 5 | 0.81 | 2.65 |
|---|---|---|
| 50 | 1.5 | 4.9 |
| 100 | 2.0 | 6.5 |
| 200 | 2.8 | 9.2 |
| 400 | 4.1 | 13.6 |
| 700 | 5.6 | 18.4 |
| 900 | 6.2 | 20.3 |
| 1000 | 6.68 | 21.9 |
| 1450 | 8.15 | 26.72 |
| 1800 | 9.0 | 29.5 |
| 2250 | 10.56 | 34.62 |
