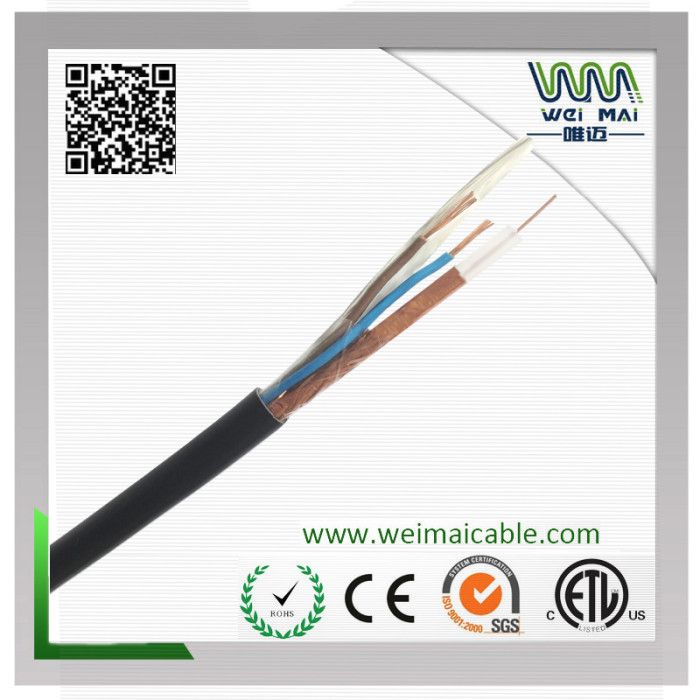

Coaxial Cable RG59
| Categories | Coaxial Cable RG59 75Ohm |
|---|---|
| Brand | WEIMAI CABLE |
| Type | Coaxial |
| Number of Conductors | 1 |
| color1 | black |
| FOB port | Shanghai Ningbo |
| Terms of Payment | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Download |  |
| Update Time | May 1,2025 |
Detail Information
Coaxial Cable China Manufacturer Supplier
Coaxial Cable RG59
Impedance:75±3Ohm Capacitance:16.0pF./Ft. Nom. Velocity of Propagain:84%
Reutm Los:20dB min(5-2300MHZ) FOB Pront :ShangHai/NingBo
| 1) Specifications |
|---|
| Center Conductor: | 0.81+0.005mm Solid Copper |
|---|---|
| Dielectric: | 3.77+0.05mmFoam PE |
| Braid Coverage: | Copper Color Foil + 128X0.12mm CCA Pitch 20 Coverage 95% |
| Jacket: | 6.1+0.10mm PVC |
| Jacket Thickness: | 0.0381mm |
| Center Conductor: | 2-18 AWG Stranded CCA 2 (7X0.38mm) |
| Dielectric: | Solid PE 1.85mm Red/Black |
| Jacket: | 3.81mm |
| 2) Characteristics |
|---|
| Spark Test: | 2000 VAC |
|---|---|
| Dielectric Strength: | Conductor to Shield: 2000VDC |
| Impedance: | 75+3 Ohm |
| Capacitance: | 16.0pF./Ft. Nom. |
| Velocity of Propagation: | 84% |
| DCR: Conductor: | 10.5 Ohms/1000Ft.(Nom.) Coax 6.6 Ohms/1000Ft(Nom.) 18 AWG |
| Return Loss: | 20dB min (5-860MHz) 15dB min(860-2500Mhz) |
| SRL: | 20dB (10-350MHz) 100% Swept Tested |
| 3) Attenuation |
|---|
| Attenuation | [@68o F. (20o C.)] |
|---|
| Frequency (MHz) | Max. (dB/100 ft.) | Frequency (MHz) | Max. (dB/100 ft.) |
|---|---|---|---|
| 5 | 0.86 | 400 | 5.10 |
| 55 | 2.05 | 450 | 5.40 |
| 83 | 2.45 | 500 | 5.70 |
| 187 | 3.60 | 550 | 5.95 |
| 211 | 3.80 | 600 | 6.20 |
| 250 | 4.10 | 750 | 6.97 |
| 300 | 4.45 | 865 | 7.52 |
| 350 | 4.80 | 1000 | 8.12 |
