7 8 Feeder Cable 1/2", 3/8",7/8",1-1/4",1-5/8"

7 8 Feeder Cable 1/2
CategoriesFeeder Cable
AlbumView larger image
BrandWEIMAI CABLE
FOB portNingbo/ Shanghai
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Download DOC
Update Time2019-04-20
Detail Information

China Manufacturer Supplier

feeder cable

Specifications
1.CE RoHs Certification
2.1 Year Quality Guarantee

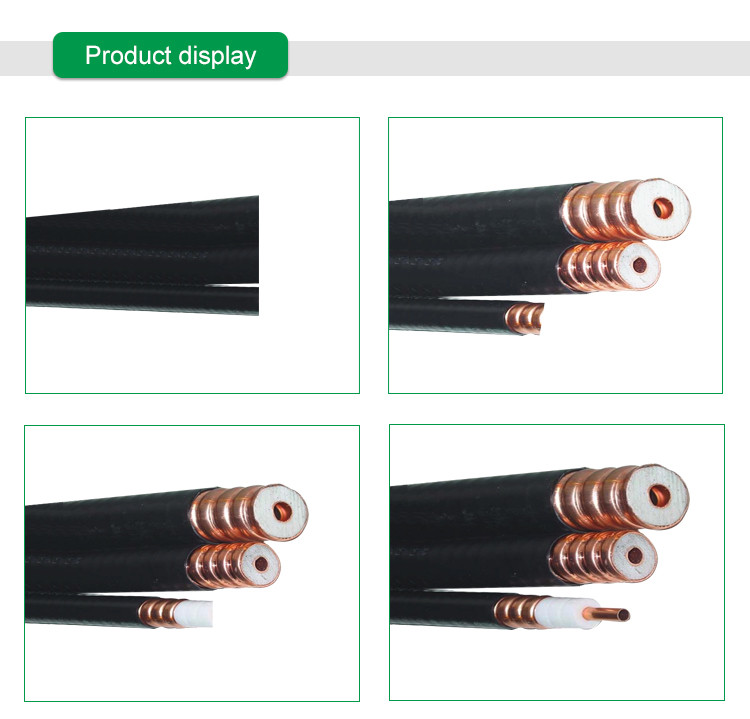

Feeder cable
Feeder cable/RF cable 3/8" 7/8" 1-1/4" 1-5/8" :
Ues to broadcast and television, microwave telecommunication, military, aerospace, vessel .
Specifications:
Model
Characteristic
Impedance
Inner Conductor
Insulation
Outer Conductor
Outer Sheath
Attenuationat 900MHz
Attenuationat1800 MHz
    (Ohm)(mm)(mm)(mm)(mm)dB/100m)dB/100m)
1/4" SF501.905.006.407.6018.4027.10
1/4"502.606.007.708.9013.1019.10
3/8" SF502.607.009.0010.2013.5019.70
3/8"503.108.009.5011.1010.9016.00
1/2" SF503.559.0012.0013.7010.0014.50
1/2"504.8012.0013.9016.007.1510.52
5/8"507.0017.0019.7022.005.077.54
7/8" F509.4022.0024.9027.504.056.03
7/8" SF509.4022.0024.9027.504.306.30
7/8"509.0022.0024.9027.503.875.84
7/8" Low Loss509.4523.0025.4028.003.685.54
1-1/4"5013.1032.0035.8039.002.824.27
1-5/8"5017.3042.0046.5050.002.414.10
