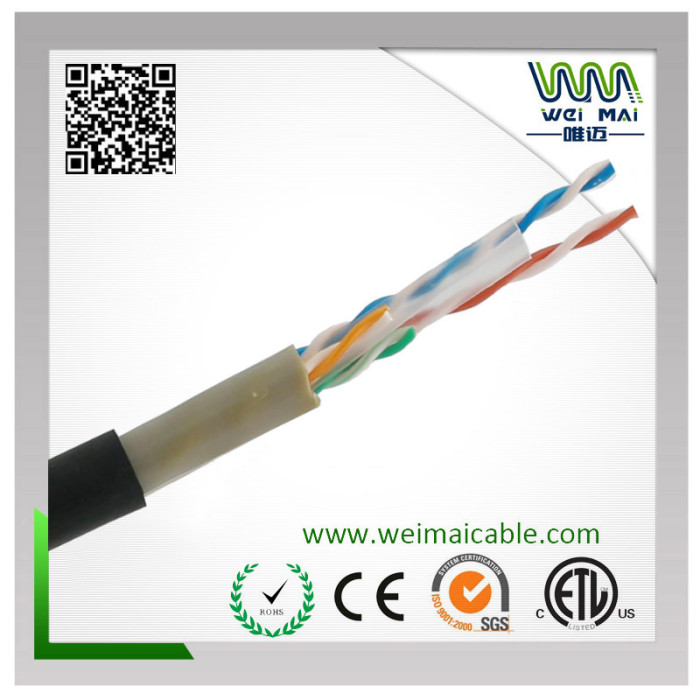

ETHERNET CABLE UTP CAT6 outdoor
| Categories | Ethernet Cable |
|---|---|
| Brand | WEIMAI CABLE |
| Model | WM-L029 |
| FOB port | NINGBO SHANGHAI |
| Terms of Payment | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Update Time | May 9,2025 |
Detail Information
Lan Cable China Manufacturer Supplier
ETHERNET CABLE UTP CAT6 outdoor 4PAIRS 23AWG BC
Impedance:100+/-15Ω Capacitance:160pF Max/100m Velocity of Propagain:69%
Propagation Delay:536 ns/100m Max @350MHz FOB Pront :ShangHai/NingBo
| Standard Compliance | Applications |
|---|---|
| ANSI/TIA-568-C.2Category 5E | 1000BASE-T(IEEE802.3ab Gigabit Ethernet) |
| ANSI-TIA/EIA-568-B.2Category 5E | 100BASE-TX(IEEE802.3u Fast Ethernet) |
| ISO/IEC11801:2002 class D | 10BASE-T(IEEE 802.3 Ethernet) |
| EN50173-1Category 5E | 52/155/622 Mbps and 1.2Gbps ATM |
| EN50288-3-1,IEC61156-5 | POE(IEEE802,3af,IEEE802.3at) |
| UL444,NEC800,NEMAWC63.1 | TP-PMD,TPDDI,ISDN,VOIP |
| ICEAS-90-661 Category 5E | Analog &DigitalVoice ,Digital &Analog Video |
| 1) Construction |
|---|
| Center Conductor: | 23 AWG/0.57mm BC 4PAIRS |
|---|---|
| Insulation: | 1.02mm HDPE(High Density Polyethylene) |
| Rip Cord | Under Jacket |
| Jacket： | 6.1mm PVC Gray Color +6.8mm PE Black Color |
| Color Code: | Pair1 White/Blue----Blue Pair2 White/Orange--Orange Pair3 White/Green---Green Pair4 White/Brown---Brown |
| 2) Electrical Characteristics |
|---|
| Impedance: | 100+/-15Ω |
|---|---|
| Mutual Capacitance: | 5.6nF Max/100m |
| Capacitance, Unbalance: | 160pF Max/100m |
| DC Resistance: | 9.38 Ω Max./100m |
| DC Resistance, Unbalance: | 2% Max |
| Insulated Resistance: | 5000 MΩ/Km |
| Dielectric Strength: | 1KV/min |
| Propagation Delay: | 536 ns/100m Max @350MHz |
| Delay Skew: | 25 ns Max |
| NVP: | 69% |
| Voltage: | 300Volts AC or DC |
| Flame Rating | CMX(UL444) |
| Approvals: | RoHS Compliant 2002/95/EC |
| 3)Transmission performance |
|---|
| FrequencyMHz | AttenuationdB/100m | NEXTdB Min. | PSNEXTdB Min. | ELFEXTdB/100mMin | PS ELFEXTdB/100mMin. | Return loss |
|---|
| nom | Max | min | nom | min | nom | min | nom | min | nom | min | nom |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 77 | 80 | 75 | 77 | 68 | 71 | 65 | 67 | 20 | 28 |
| 4 | 3.8 | 68 | 71 | 66 | 68 | 56 | 59 | 53 | 55 | 23 | 31 |
| 8 | 5.3 | 64 | 66.5 | 62 | 64 | 50 | 53 | 47 | 49 | 24.5 | 32.5 |
| 10 | 6 | 62 | 65 | 60 | 62 | 48 | 51 | 45 | 47 | 25 | 33 |
| 16 | 7.6 | 59 | 62 | 57 | 59 | 44 | 47 | 41 | 43 | 25 | 33 |
| 20 | 8.5 | 58 | 61 | 56 | 58 | 42 | 45 | 39 | 41 | 25 | 33 |
| 25 | 9.5 | 56 | 59 | 54 | 56 | 40 | 43 | 37 | 39 | 24.3 | 32.3 |
| 31.5 | 10.7 | 55 | 58 | 53 | 55 | 38 | 41 | 35 | 37 | 23.6 | 31.6 |
| 62.5 | 15.4 | 50 | 53 | 48 | 50 | 32 | 35 | 29 | 31 | 21.5 | 29.5 |
| 100 | 19.8 | 47 | 50 | 45 | 47 | 28 | 31 | 25 | 27 | 20.1 | 28.1 |
| 155 | 25.3 | 44 | 47 | 42 | 44 | 24 | 27 | 21 | 23 | 18.8 | 26.8 |
| 200 | 29 | 43 | 46 | 41 | 43 | 22 | 25 | 19 | 21 | 18 | 26 |
| 250 | 32.8 | 41 | 44 | 39 | 41 | 20 | 23 | 17 | 19 | 17.3 | 25.3 |
| 300 | 36.6 | 40 | 43 | 38 | 40 | 18 | 21 | 15 | 17 | 16.8 | 24.8 |
| 350 | 40 | 39 | 42 | 37 | 39 | 17 | 20 | 14 | 16 | 16.3 | 24.3 |
