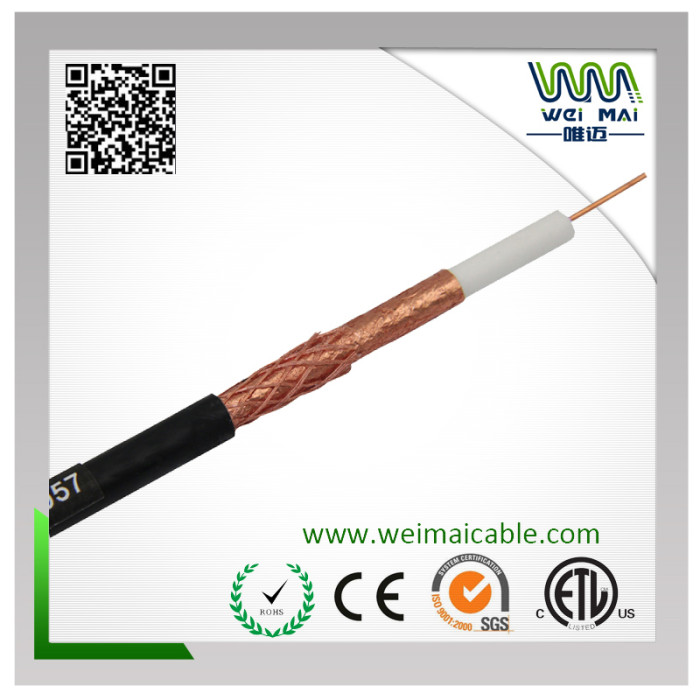

Coaxial Cable RG6 CCA Jelly

Coaxial Cable RG6 CCA Jelly
CategoriesCoaxial Cable RG6 75Ohm
AlbumView larger image
BrandWEIMAI CABLE
ModelWM-COAX-055
Place of OriginChina
Brand NameWEIMAI
Conductor MaterialCCS/CCA/Solid Copper
Braid Density35%
1st shieldBonded Foil
2st shieldBraided Shield
JacketPVC
Unit PriceUS $ 0.09 / meter
FOB portShanghai/Ningbo
Terms of PaymentL/C, D/P, T/T, Discuss
Download DOC
Update Time2019-02-22
Detail Information

Coaxial Cable China Manufacturer Supplier

Coaxial Cable RG6 CCA JELLY

Impedance:75±3Ohm         Capacitance:54±3pF/Ft(Nom.)           Velocity of Propagain:85

Reutm Los:20dB min(5-2300MHZ)                                                         FOB Pront :ShangHai/NingB

1) Construction
Center Conductor:1.02+0.01mm Solid Copper/Copper Clad Steel
Dielectric:4.75+0.05mmFoam PE
Shield:Copper Color Foil
Braid Coverage:48X0.12mm Al Alloy  Pitch 36  35% Braiding
Jacket:6.80+0.1mm PVC
Jelly/APD:  Jelly
2) Characteristics
Sparker Test:4000VAC
Impedance:75+3 Ohm
Capacitance:54+3pF/m
Velocity of Propagation:85%
Return Loss:20dB min (5-2300MHz)
3) Attenuation
Attenuation[@68o F. (20o C.)]
Frequency (MHz)Maximum (dB/100 ft.)Maximum (dB/100 m)
50.581.9
501.54.9
1002.06.5
2002.89.2
4004.113.6
7005.618.4
9006.220.3
10006.521.4
14508.026.2
18008.527.9
225010.034.0
