RG6 Plus Fiber Optic Cable GJXH
RG6 Plus Fiber Optic Cable GJXH
| Categories | Coaxial Cable RG59 75Ohm |
|---|---|
| Brand | WEIMAI CABLE |
| Model | WM-COAX-049 |
| Place of Origin | Zhejiang,China(Mainland) |
| Brand Name | WEIMAI |
| Conductor Material | CCS/CCA/Solid Copper |
| Insulation Material | PE |
| Braid Density | 40%-90% |
| 1st shield | Bonded Foil |
| 2st shield | Braided Shield |
| Jacket | PVC |
| Unit Price | US $ 0.09 / meter |
| FOB port | Shanghai/Ningbo |
| Terms of Payment | L/C, D/A, D/P, T/T, Discuss |
| Download |  |
| Update Time | May 1,2025 |
Detail Information
Coaxial Cable China Manufacturer Supplier Made in China

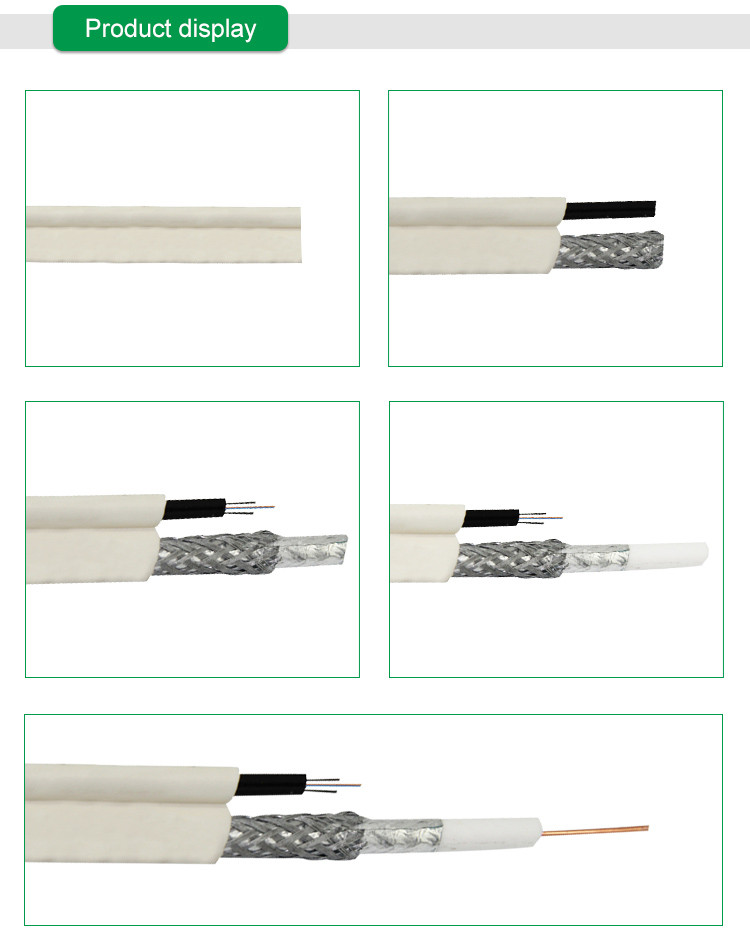

RG6 Plus Fiber Optic Cable GJXH
Impedance:75±3Ohm Capacitance:54±3pf/m Velocity of Propagain:85% Reutm Los:20dB min(5-2300MHZ) FOB Pront :ShangHai/NingBo
| 1) Construction |
|---|
| Center Conductor: | 1.02+0.01mmSolid Copper |
|---|---|
| Dielectric: | 4.66+0.05mmFoam PE |
| Shield: | Bonded Al Foil |
| Braid Coverage: | 96X0.12mm Tinned Copper Pitch 30 Coverage 60% |
| Jacket: | 6.80+0.10mmPVC |
| Nom. Thick | 0.80mm |
| Jelly/APD: | Per Customers Special Requirement |
| 2) Characteristics |
|---|
| Impedance: | 75+3 Ohm |
|---|---|
| Capacitance: | 54+3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300MHz) |
| 3) Attenuation |
|---|
| Attenuation | [@68o F. (20o C.)] |
|---|
| 5 | 0.86 | 400 | 5.10 |
|---|---|---|---|
| 55 | 2.05 | 450 | 5.40 |
| 83 | 2.45 | 500 | 5.70 |
| 187 | 3.60 | 550 | 5.95 |
| 211 | 3.80 | 600 | 6.20 |
| 250 | 4.10 | 750 | 6.97 |
| 300 | 4.45 | 865 | 7.52 |
| 350 | 4.80 | 1000 | 8.12 |
