Coaxial Cable RG59 Siamese Messenger outdoor

Coaxial Cable RG59 Siamese Messenger outdoor
CategoriesCoaxial Cable RG59 75Ohm
AlbumView larger image
BrandWEIMAI CABLE
ModelWM-COAX-048
TypeCoaxial
Number of Conductors1
color1black
color2white
FOB portShanghai Ningbo
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Download DOC
Update Time2019-06-17
Detail Information

Coaxial Cable China Manufacturer Supplier

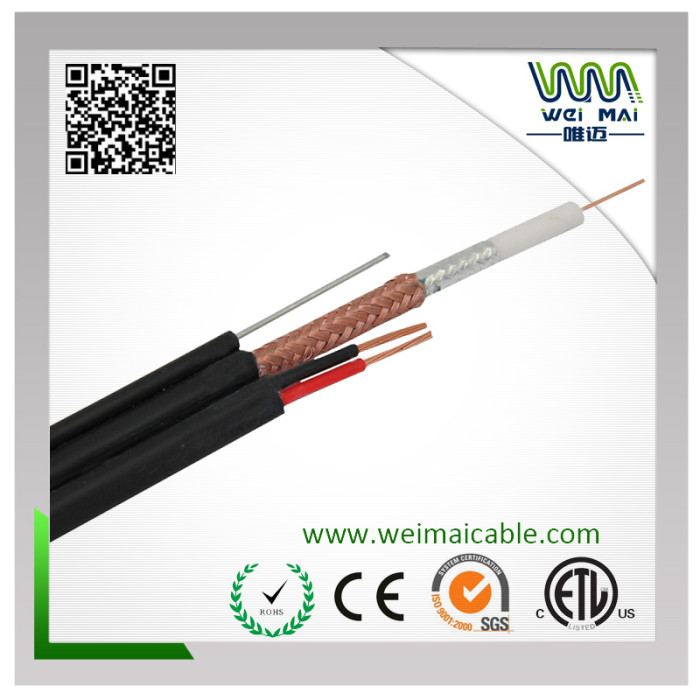

Coaxial Cable RG59 Siamese  Messenger outdoor PE

mpedance:75±3Ohm             Capacitance:16.0pF./Ft. Nom.            Velocity of Propagain:84%

Reutm Los:20dB min(5-2300MHZ)                                               FOB Pront :ShangHai/NingBo



1) Specifications
Center Conductor:0.81+0.005mm Solid Copper
Dielectric:3.66+0.05mmFoam PE
Braid Coverage:Bonded Alumium Foil + 128X0.12mm CCA Pitch 16mm  Coverage 98.5%
Jacket:6.1+0.10mm PE Black
Jacket Thickness:0.0381mm
Center Conductor:2-18 AWG Stranded CCA 2 (7X0.38mm)
Dielectric:Solid PE 1.85mm   Red/Black
Jacket: 3.81mm
Messenger:1.0mm Steel
2) Characteristics
Spark Test:2000 VAC
Dielectric Strength: Conductor to Shield: 2000VDC
Impedance:75+3 Ohm
Capacitance:16.0pF./Ft. Nom.
Velocity of Propagation:84%
DCR: Conductor:10.5 Ohms/1000Ft.(Nom.) Coax  6.6 Ohms/1000Ft(Nom.) 18 AWG
Return Loss:20dB min (5-860MHz)  20dB min (5-860MHz)
SRL:20dB (10-350MHz) 100% Swept Tested
3)Attenuation
Attenuation[@68o F. (20o C.)]
Frequency (MHz)Max. (dB/100 ft.)Frequency (MHz)Max. (dB/100 ft.)
50.864005.10
552.054505.40
832.455005.70
1873.605505.95
2113.806006.20
2504.107506.97
3004.458657.52
3504.8010008.12
