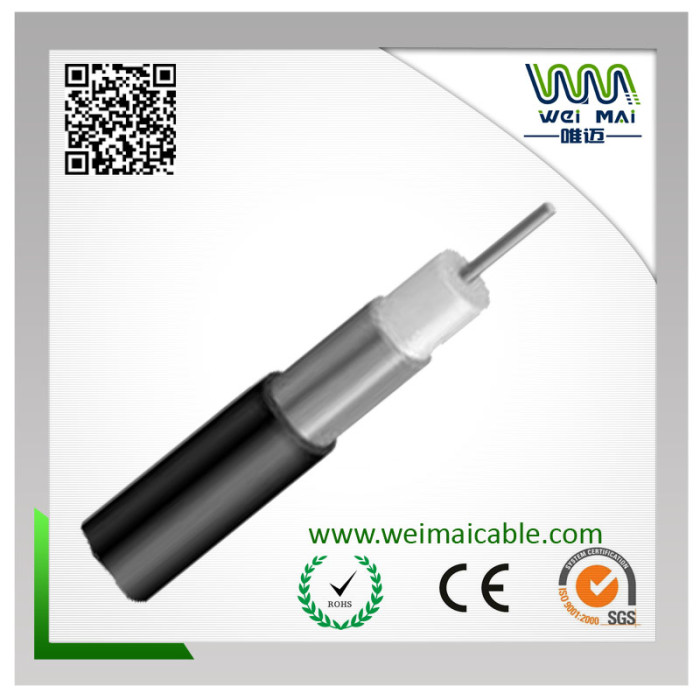

Coaxial Cable RG320 Truck Cable
Coaxial Cable RG320 Truck Cable
| Categories | RG320 cable |
|---|---|
| Brand | WEIMAI CABLE |
| Model | WMRG32001 |
| Place of Origin | Zhejiang,China(Mainland) |
| Brand Name | WEIMAI |
| Conductor Material | CCS/CCA/Solid Copper |
| Insulation Material | PE |
| Braid Density | 40%-90% |
| 1st shield | Bonded Foil |
| 2st shield | Braided Shield |
| Jacket | PVC |
| Unit Price | US $ 0.2 / meter |
| FOB port | Shanghai/Ningbo |
| Terms of Payment | L/C, D/P, T/T, Discuss |
| Download |  |
| Update Time | May 1,2025 |
Detail Information
Coaxial Cable China Manufacturer Supplier
Coaxial Cable RG320 Truck Cable
Impedance:75±3Ohm Capacitance:50±3pF/Ft(Nom.)
Velocity of Propagain:87% FOB Pront :ShangHai/NingBo
| Construction |
|---|
| Center Conductor | 1.80±0.10mm Solid Copper/Copper Clad Aluminum |
|---|---|
| Dielectric | 7.47±0.05mm Foam PE |
| Outer Conductor | 8.13mm Aluminum Tube |
| Outer Conductor Thickness | 0.34mm |
| Jacket | 10.03±0.05mm PVC/PE |
| Jacket Thickness | 0.89mm |
| Messenger | 2.77mm Steel |
|---|---|
| Jell/APD | Per Customers Special Requirement |
| 2) Characteristics |
|---|
| Impedance | 75+3 Ohm |
|---|---|
| Capacitance | 54+3nF/km 15.3+1pF/km |
| Velocity of Propagation | 87% |
| Attenuation |
|---|
| Attenuation | [@68o F. (20o C.)] |
|---|
| Frequency (MHz) | Max. (dB/100 ft.) | Max. (dB/100 ft.) |
|---|---|---|
| 5 | 0.24 | 0.79 |
| 50 | 0.80 | 2.62 |
| 108 | 1.22 | 4.00 |
| 150 | 1.45 | 4.76 |
| 193 | 1.65 | 4.51 |
| 250 | 1.86 | 6.10 |
| 300 | 2.04 | 6.69 |
| 350 | 2.25 | 7.38 |
| 400 | 2.38 | 7.81 |
| 450 | 2.52 | 8.27 |
| 500 | 2.72 | 8.92 |
| 550 | 2.85 | 9.35 |
| 600 | 2.98 | 9.78 |
| 750 | 3.15 | 10.86 |
| 1000 | 3.89 | 12.76 |
