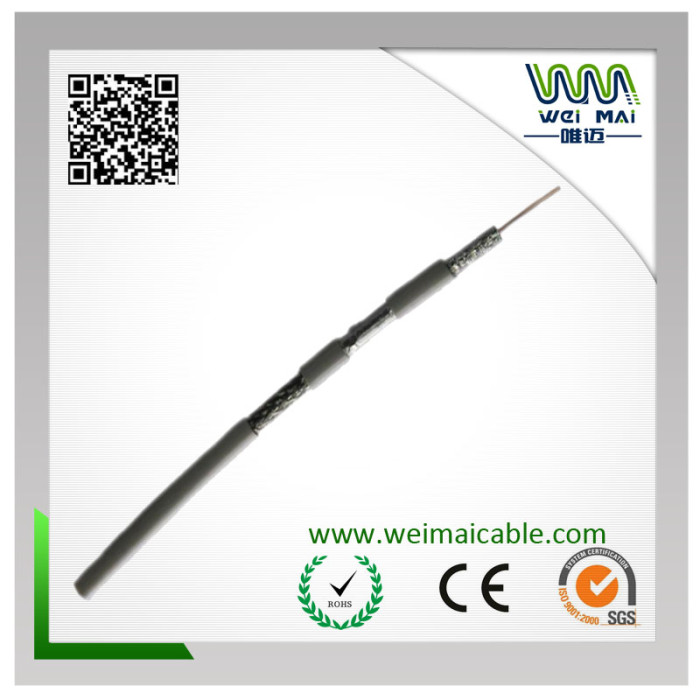

Coaxial cable RG59 Triple 75ohm

Categories	Coaxial Cable RG59 75Ohm
Brand	WEIMAI CABLE
Model	WMRG59201403
Place of Origin	Zhejiang,China(Mainland)
Brand Name	WEIMAI
Conductor Material	CCS/CCA/Solid Copper
Insulation Material	PE
Braid Density	40%-90%
1st shield	Bonded Foil
2st shield	Braided Shield
Jacket	PVC
Unit Price	US $ 0.08 / meter
FOB port	Shanghai/Ningbo
Terms of Payment	L/C, D/P, T/T, Discuss
Download
Update Time	May 1,2025

Contact Now

Detail Information

Coaxial Cable China Manufacturer Supplier

Coaxial Cable RG59 Triple 75ohm

Impedance:50±3Ohm Capacitance:16.0±3pf/ft(Nom.) Velocity of Propagain:84% FOB Pront :ShangHai/NingBo

Specifications

Center Conductor	0.81+0.005mmSolid Copper
Dielectric	3.66+0.052mm Fomd PE
Braid Coverage	95%Copper
Jacket	6.1+0.010mm PVC
Jacket Thickness	0.0381mm

Center Conductor	2-18 AVG Stranded Copper (7X0.38mm)

Dielectric	Solid PE 1.85mm

Jacket	3.81mm

Characteristics

Sparker Test:	2000AVC
Dielectric Strength	Conductor to shield:2000DVC
Impedance:	75±3OHM
Capacitance	16.0±3pf/ft(Nom).
Velocity of propagation	84%
DCR:	10.5ohms/1000ft.(nom.)Coax
