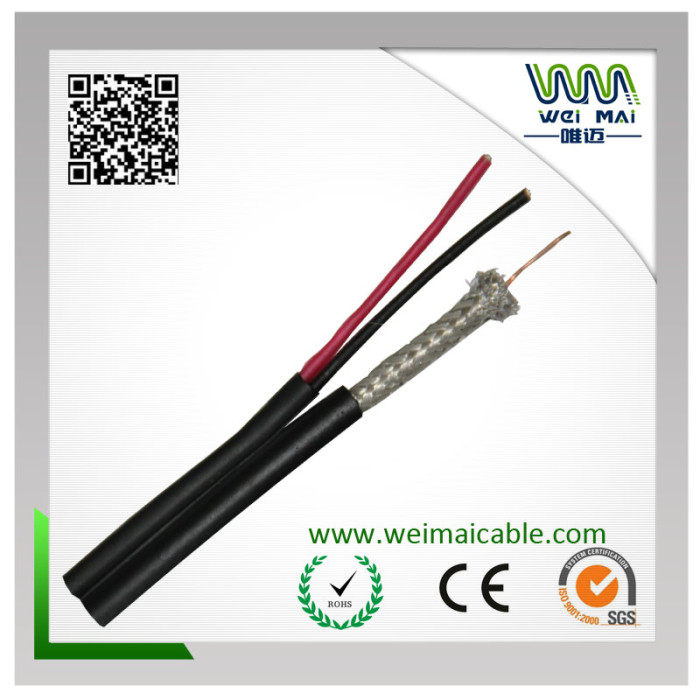

Coaxial cable RG59 2DC 75ohm
Coaxial cable RG59 2DC 75ohm
| Categories | Coaxial Cable RG59 75Ohm |
|---|---|
| Brand | WEIMAI CABLE |
| Model | WMRG59201401 |
| Place of Origin | Zhejiang,China(Mainland) |
| Brand Name | WEIMAI |
| Conductor Material | CCS/CCA/Solid Copper |
| Insulation Material | PE |
| Braid Density | 40%-90% |
| 1st shield | Bonded Foil |
| 2st shield | Braided Shield |
| Jacket | PVC |
| Unit Price | US $ 0.15 / meter |
| FOB port | Shanghai/Ningbo |
| Terms of Payment | L/C, D/P, T/T, Discuss |
| Download |  |
| Update Time | May 1,2025 |
Detail Information
Coaxial Cable China Manufacturer Supplier
Coaxial Cable RG59 2DC 75ohm
Impedance:75±3Ohm Capacitance:16.0±3pf/ft(Nom.)
Velocity of Propagain:84% FOB Pront :ShangHai/NingBo
| Specifications |
|---|
| Center Conductor | 0.81+0.005mmSolid Copper |
|---|---|
| Dielectric | 3.66+0.05mm Fomd PE |
| Braid Coverage | 95%Copper |
| Jacket | 6.1+0.010mm PVC |
| Jacket Thickness | 0.0381mm |
| Center Conductor | 2-18 AVG Stranded Copper (7X0.38mm) |
|---|
| Dielectric | Solid PE 1.85mm |
|---|
| Jacket | 3.81mm |
|---|
| Characteristics |
|---|
| Sparker Test: | 2000AVC |
|---|---|
| Dielectric Strength | Conductor to shield:2000DVC |
| Impedance: | 75±3OHM |
| Capacitance | 16.0±3pf/ft(Nom). |
| Velocity of propagation | 84% |
| DCR: | 10.5ohms/1000ft.(nom.)Coax |
