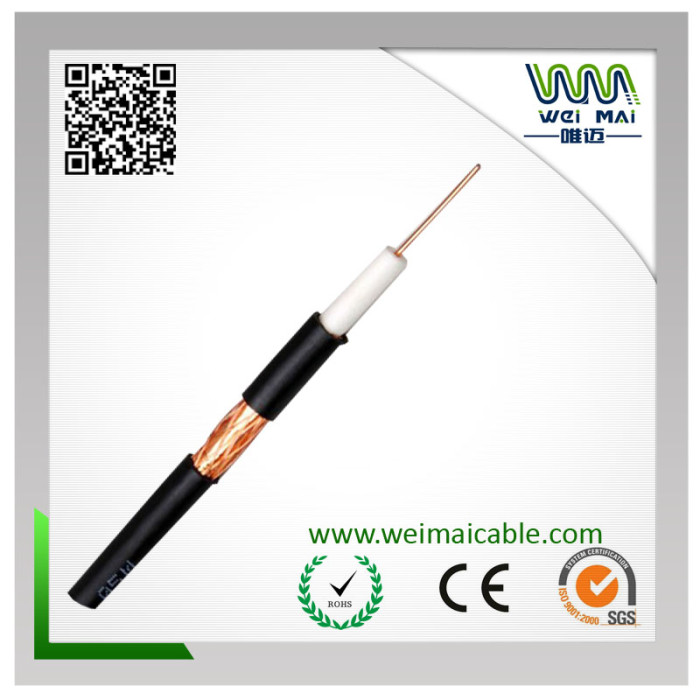

Coaxial cable RG7 75ohm
Coaxial cable RG7 75ohm
| Categories | Coaxial Cable RG7 75Ohm |
|---|---|
| Brand | WEIMAI CABLE |
| Model | WMRG7201401 |
| Place of Origin | Zhejiang,China(Mainland) |
| Brand Name | WEIMAI |
| Conductor Material | CCS/CCA/Solid Copper |
| Insulation Material | PE |
| Braid Density | 40%-90% |
| 1st shield | Bonded Foil |
| 2st shield | Braided Shield |
| Jacket | PVC |
| Unit Price | US $ 0.18 / meter |
| FOB port | Shanghai/Ningbo |
| Terms of Payment | L/C, D/P, T/T, Discuss |
| Download |  |
| Update Time | May 1,2025 |
Detail Information
Coaxial Cable China Manufacturer Supplier
Coaxial cable RG7 75ohm
Capacitance::54±3pf/m Reutm Los:20dB min(5-2300MHZ)
Velocity of Propagain:85% FOB Pront :ShangHai/NingBo

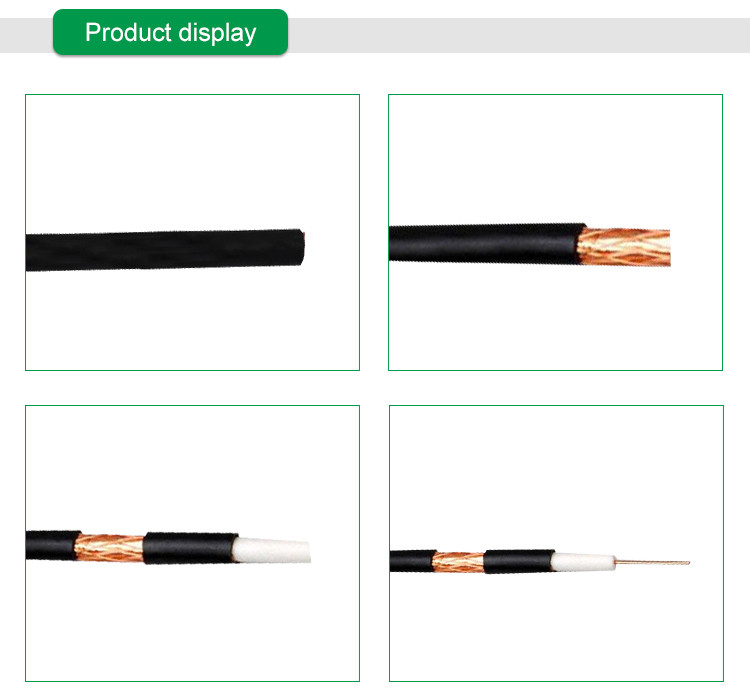

| Construction |
|---|
| Center Conductor | 1.30±0.01mmSolid Coppr/ Coppr Clad Aluminum |
|---|---|
| Dielectric | 5.72±0.05mmF |
| Shield | Bonded Ai Foil |
| Braid coverage | 60% AI |
| Shield | Al Ai Foil |
| Braid coverage | 40% AI |
| Jacket | 8.59±010mm PVC |
| Characteristics |
|---|
| Impedance: | 75±3OHM |
|---|---|
| Capacitance | 54±3nf/ft(Nom) |
| Velocity of propagation | 85% |
| Attenuation |
|---|
| Attenuation | {68°f.(20℃.）} |
|---|
| Frequency(MHz) | MAX.(dB/100ft.) | MAX.(dB/100ft.) |
|---|
| 5 | 0.47 | 1.54 |
|---|---|---|
| 55 | 1.25 | 4.10 |
| 187 | 2.22 | 7.28 |
| 250 | 2.56 | 8.40 |
| 300 | 2.82 | 9.25 |
| 400 | 3.27 | 10.73 |
| 450 | 3.46 | 11.35 |
| 500 | 3.67 | 12.04 |
| 550 | 3.85 | 12.63 |
| 600 | 4.05 | 13.28 |
| 750 | 4.57 | 14.99 |
| 865 | 4.93 | 16.17 |
| 1000 | 5.32 | 17.45 |
