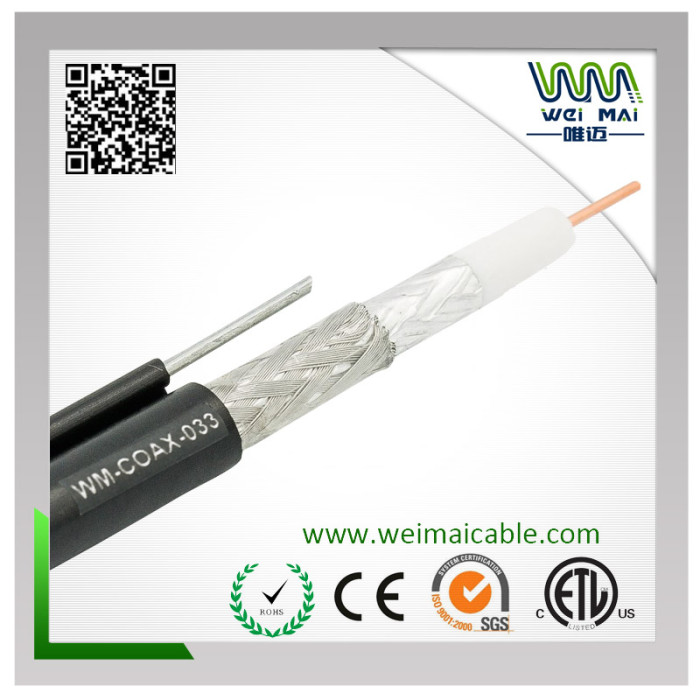

Coaxial Cable RG6 90% Jelly Messenger 75ohm
Coaxial Cable RG6 90% Jelly Messenger 75ohm
| Categories | Coaxial Cable RG6 75Ohm |
|---|---|
| Brand | WEIMAI CABLE |
| Model | WM-COAX-033 |
| Place of Origin | Zhejiang,China(Mainland) |
| Brand Name | WEIMAI |
| Conductor Material | CCS/CCA/Solid Copper |
| Insulation Material | PE |
| Braid Density | 90% |
| 1st shield | Bonded Foil |
| 2st shield | Braided Shield |
| Jacket | PVC |
| Unit Price | US $ 0.09 / meter |
| FOB port | Shanghai/Ningbo |
| Terms of Payment | L/C, D/P, T/T, Discuss |
| Download |  |
| Update Time | May 1,2025 |
Detail Information
coaxial cable china supplier manufacturer
Coaxial Cable RG6 90% Jelly Messenger 75ohm
Impedance:75±3Ohm Capacitance:54±3pf/m Velocity of Propagain:85%
Reutm Los:20dB min(5-2300MHZ) FOB Pront :ShangHai/NingBo
| 1) Construction |
|---|
| Center Conductor: | 1.02+0.01mm Solid Copper/Copper Clad Steel |
|---|---|
| Dielectric: | 4.57+0.05mmFoam PE |
| Shield: | Al Foil/Bonded Al Foil |
| Braid Coverage: | 128X0.15mm Al Alloy Pitch30 90% Braiding |
| Jacket: | 6.90+0.1mm PVC |
| Messenger： | 1.3mmSteel |
| 2) Characteristics |
|---|
| Sparker Test: | 4000VAC |
|---|---|
| Impedance: | 75+3 Ohm |
| Capacitance: | 54+3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300MHz) |
| 3) Attenuation |
|---|
| Attenuation | [@68o F. (20o C.)] |
|---|
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
|---|---|---|
| 5 | 0.58 | 1.9 |
| 50 | 1.5 | 4.9 |
| 100 | 2.0 | 6.5 |
| 200 | 2.8 | 9.2 |
| 400 | 4.1 | 13.6 |
| 700 | 5.6 | 18.4 |
| 900 | 6.2 | 20.3 |
| 1000 | 6.5 | 21.4 |
| 1450 | 8.0 | 26.2 |
| 1800 | 8.5 | 27.9 |
| 2250 | 10.0 | 34.0 |
