Coaxial Cable RG6 70% Messenger75ohm
Coaxial Cable RG6 70% Messenger75ohm
| Categories | Coaxial Cable RG6 75Ohm |
|---|---|
| Brand | WEIMAI CABLE |
| Model | WM-COAX-028 |
| Place of Origin | Zhejiang,China(Mainland) |
| Brand Name | WEIMAI |
| Conductor Material | CCS/CCA/Solid Copper |
| Insulation Material | PE |
| Braid Density | 70% |
| 1st shield | Bonded Foil |
| 2st shield | Braided Shield |
| Jacket | PVC |
| Unit Price | US $ 0.09 / meter |
| FOB port | Shanghai/Ningbo |
| Terms of Payment | L/C, D/A, D/P, T/T, Discuss |
| Download |  |
| Update Time | May 1,2025 |
Detail Information

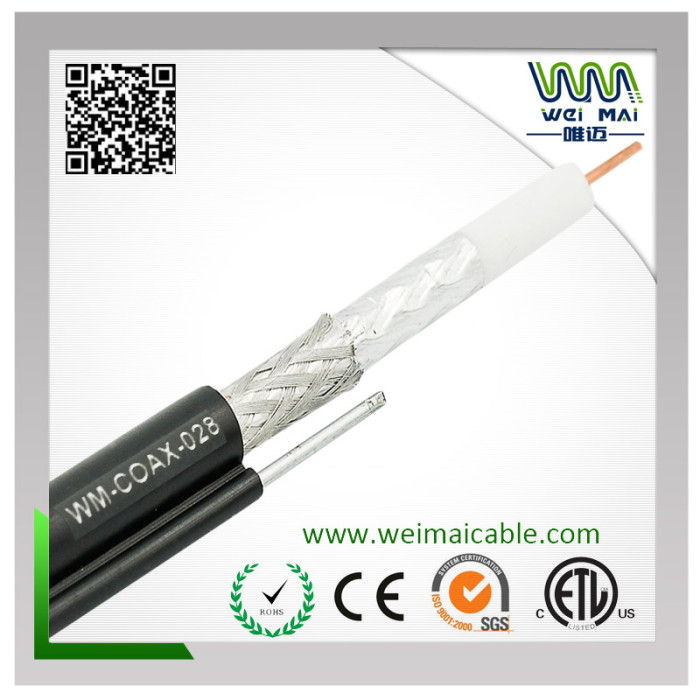

COAXIAL CABLE RG6 MESSENGER 75Ohm

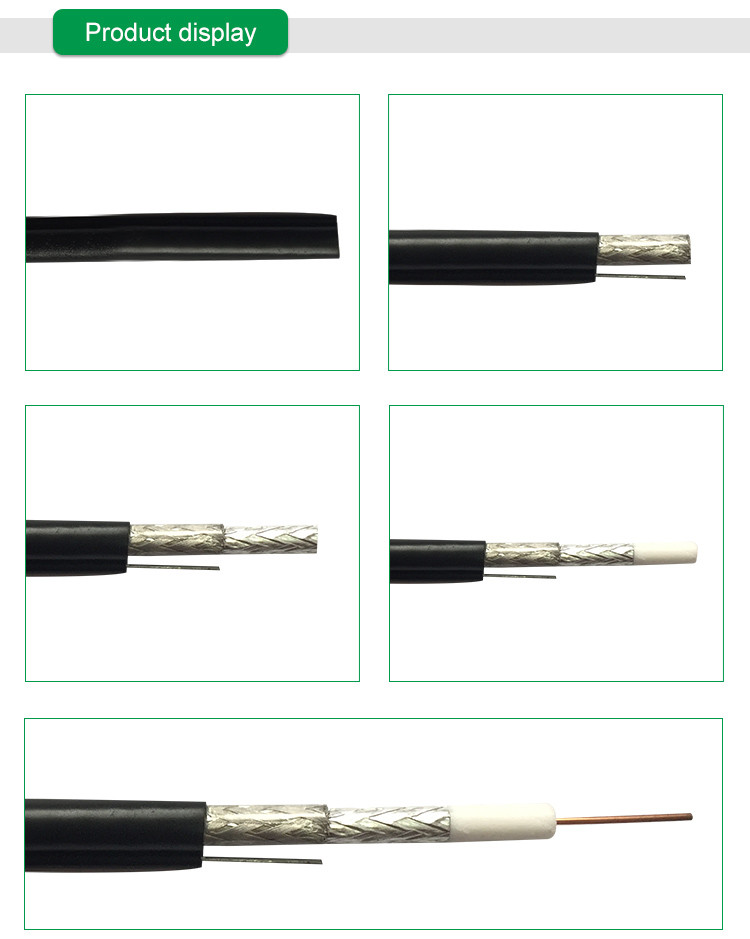

Product construction
Inner Conductor:Anaerobic Copper Wire (Diameter￠1.02mm)
Insulation:Foam PE (Diameter￠4.57mm)
1st Shield:Bonded AL/PET/AL (Coverage≥118%）
2nd Shield:AL-Mg (Coverage≥77%）
3nd Shield:Bonded AL/PET/AL (Coverage≥118%）
Jacket:Gopher Protected FR-PVC (Diameter￠7.06mm)
Messenger:Galvanized Steel Wire (Diameter￠1.30mm)
Other:Color、printing accoring to customer’s requirement
Mechanical characteristic | |||
Minimum bending radius | 70mm | ||
Inner conductor adhesion force | ＞23N | ||
Application environment | -40℃~+75℃ | ||
Environmental standards | ROHS | ||
Packaging length | According to customer's requirement | ||
Electrical characteristic | |||
Impendance Ω | Transmission rate % | Return loss dB | |
75±3 | 82 | 5---1002MHz＞26 | |
1003--1525MHz＞24 | |||
1526--3000MHz＞20 | |||
Attenuation | |||
Frenquency MHz | @20℃ db/100m | @20℃
db/100Ft | |
5.00 | 1.90 | 0.58 | |
55.00 | 4.92 | 1.50 | |
211.00 | 9.41 | 2.87 | |
350.00 | 12.20 | 3.72 | |
450.00 | 13.97 | 4.26 | |
550.00 | 15.61 | 4.76 | |
750.00 | 18.43 | 5.62 | |
1000.00 | 21.44 | 6.54 | |
1450.00 | 25.87 | 7.86 | |
1850.00 | 29.48 | 8.99 | |
2250.00 | 32.49 | 9.91 | |
3000.00 | 37.51 | 11.44 | |
