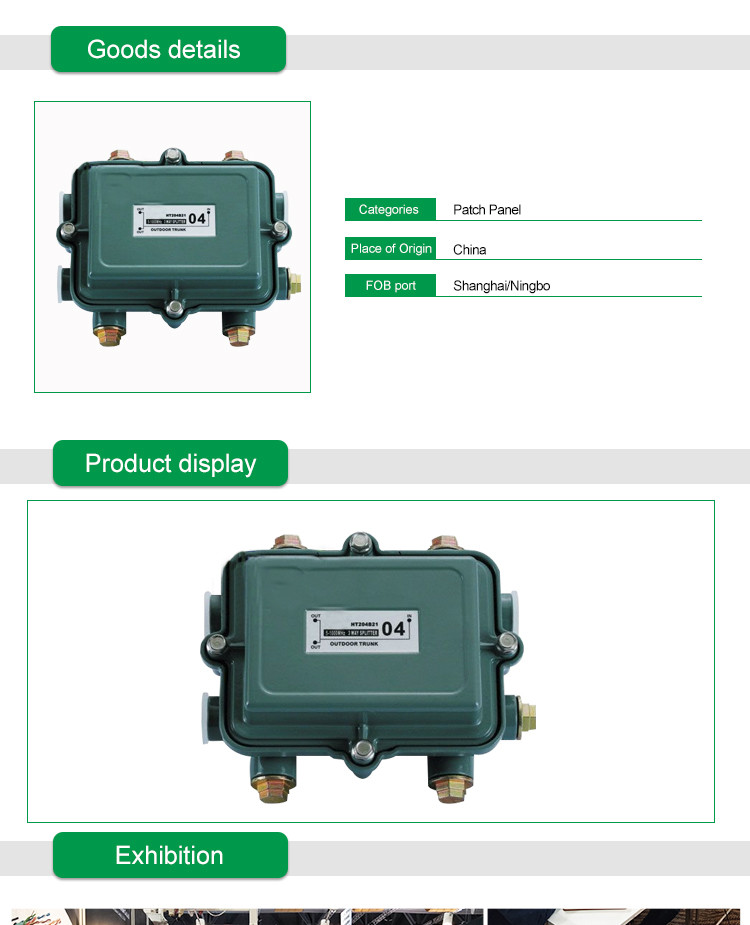

outdoor Splitter (1-way Tap)

1.Used for field trunk of CATV, good waterproof design.
2.75Ω,5/8″KS-F trans-connector available.
3.Aluminum alloy die casting shell, anti-corrosion paint-spray.
4.Adapt to 5-1000MHZ.
5.Metal isolation netting, prevention of RF interference, good shield function.
6.All ports adapt to pass power6 or 10A AC/DC.
1-way Tap
ItemParametersTap Normal68101214161820Loss Typical5MHz±1.05.67.29.211.313.815.417.419.4(dB)(Permissible Deviation)50MHz±1.05.77.39.611.91415.617.619.6  550MHz±1.05.97.69.612.114161819  750MHz±1.06.27.89.81214.216.118.220.1  1000MHz±1.06.37.910.312

.114.316.318.420.6Insertion Loss5MHz≤3.5≤2.9≤2.2≤1.7≤1.5≤1.2≤1.1≤1.0(dB)50MHz≤3.8≤3.3≤2.7≤1.9≤1.6≤1.4≤1.3≤1.1 550MHz≤4.0≤3.5≤3.0≤2.4≤1.8≤1.5≤1.4≤1.3 750MHz≤4.5≤4.0≤3.5≤2.8≤2.2≤2.0≤2.0≤1.8 1000MHz≤5.0≤4.5≤4.0≤3.2≤2.8≤2.5≤2.4≤2.2Reverse Isolation 5-50MHz≥23≥23≥24≥26≥28≥30≥32≥38(dB)50-550MHz≥22≥20≥24≥26≥26≥28≥31≥31 550-750MHz≥20≥20≥23≥24≥26≥28≥28≥28 750-1000MHz≥18≥20≥22≥23≥24≥26≥26≥27Return5-50MHz≥18≥20≥20≥22≥22≥22≥22≥22Loss 50-550MHz≥20≥20≥20≥20≥20≥20≥20≥20(dB)550-750MHz≥16≥17≥17≥17≥17≥17≥17≥17 750-1000MHz≥16≥16≥16≥16≥16≥16≥16≥16
