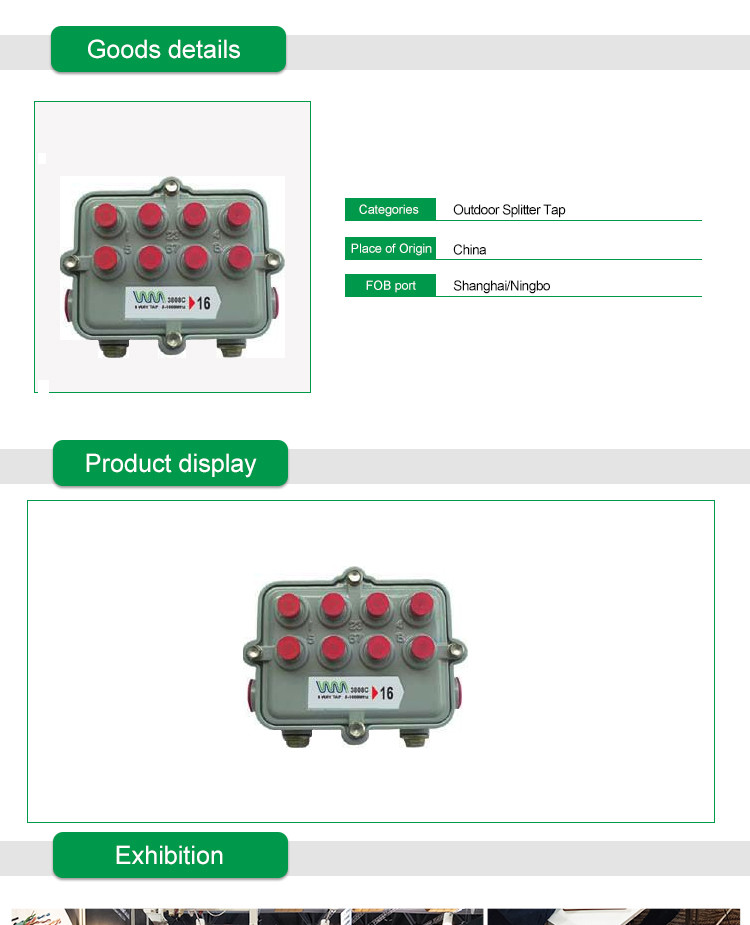

outdoor Splitter (8-way Tap) Half Power Pass
| Categories | Outdoor Splitter Tap |
|---|---|
| Brand | WEIMAI CABLE |
| FOB port | Ningbo/ Shanghai |
| Terms of Payment | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Download DOC |  |
| Update Time | Apr 20,2024 |
Detail Information
China Manufacturer Supplier Made in China
Coaxial Cable RG59 Copper Gray PVC
| 1.Used for field trunk of CATV, good waterproof design. |
| 2.75Ω,5/8″KS-F trans-connector available. |
| 3.Aluminum alloy die casting shell, anti-corrosion paint-spray. |
| 4.Adapt to 5-1000MHZ. |
| 5.Metal isolation netting, prevention of RF interference, good shield function. |
| 6.All ports adapt to pass power6 or 10A AC/DC. |
| 2-way Tap |
| Item | Parameters |
| Tap Loss (dB) | Normal | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | ||
| Tap Loss (dB) | Typical | 5MHz | ±1.0 | 7.2 | 9.8 | 11.9 | 13.8 | 15.8 | 17.8 | 19.3 | 21.4 |
| Tap Loss (dB) | (Permissible Deviation) | 50MHz | ±1.0 | 6.9 | 10 | 11.5 | 14 | 16.5 | 17.8 | 20 | 21.9 |
| Tap Loss (dB) | 550MHz | ±1.0 | 6.9 | 10.2 | 11.6 | 14.2 | 16.9 | 17.9 | 20.4 | 22.3 | |
| Tap Loss (dB) | 750MHz | ±1.0 | 8.2 | 10.5 | 12 | 14.5 | 17.2 | 18.3 | 20.7 | 22.6 | |
| Tap Loss (dB) | 1000MHz | ±1.0 | 8.6 | 10.7 | 12.3 | 14.6 | 17.4 | 18.7 | 21 | 22.8 | |
| Insertion Loss (dB) | 5MHz | ≤3.5 | ≤3.0 | ≤2.9 | ≤2.2 | ≤1.7 | ≤1.5 | ≤1.2 | ≤1.1 | ||
| Insertion Loss (dB) | 50MHz | ≤3.8 | ≤3.4 | ≤3.2 | ≤2.7 | ≤1.9 | ≤1.6 | ≤1.4 | ≤1.3 | ||
| Insertion Loss (dB) | 550MHz | ≤4.0 | ≤3.7 | ≤3.5 | ≤3.0 | ≤2.4 | ≤1.8 | ≤1.5 | ≤1.4 | ||
| Insertion Loss (dB) | 750MHz | ≤4.5 | ≤4.1 | ≤4.0 | ≤3.5 | ≤2.8 | ≤2.2 | ≤2.0 | ≤2.0 | ||
| Insertion Loss (dB) | 1000MHz | ≤5.0 | ≤4.6 | ≤4.5 | ≤4.0 | ≤3.2 | ≤2.8 | ≤2.5 | ≤2.3 | ||
| Reverse Isolation (dB) | 5-50MHz | ≥23 | ≥23 | ≥23 | ≥26 | ≥26 | ≥30 | ≥32 | ≥34 | ||
| Reverse Isolation (dB) | 50-550MHz | ≥22 | ≥22 | ≥22 | ≥26 | ≥26 | ≥28 | ≥30 | ≥32 | ||
| Reverse Isolation (dB) | 550-750MHz | ≥20 | ≥20 | ≥20 | ≥24 | ≥24 | ≥28 | ≥28 | ≥30 | ||
| Reverse Isolation (dB) | 750-1000MHz | ≥18 | ≥20 | ≥20 | ≥23 | ≥24 | ≥26 | ≥26 | ≥27 |
