Flexible RV Cable

1. PVC Insulated
2. Unsheathed
3. Stranded Copper Conductor
4. RV single core flexible power cable
Unshielded Single Core Flexible Power Cable
Applications
Suitable for use in conduit and for fixed, protected installation of Wiring Burglar Alarm, Public Address Systems,Intercoms, Telephone Stations, Speakers, Instrumentation, Control and other Low Voltage Circuits that are Power-Limited and anti-interference needed

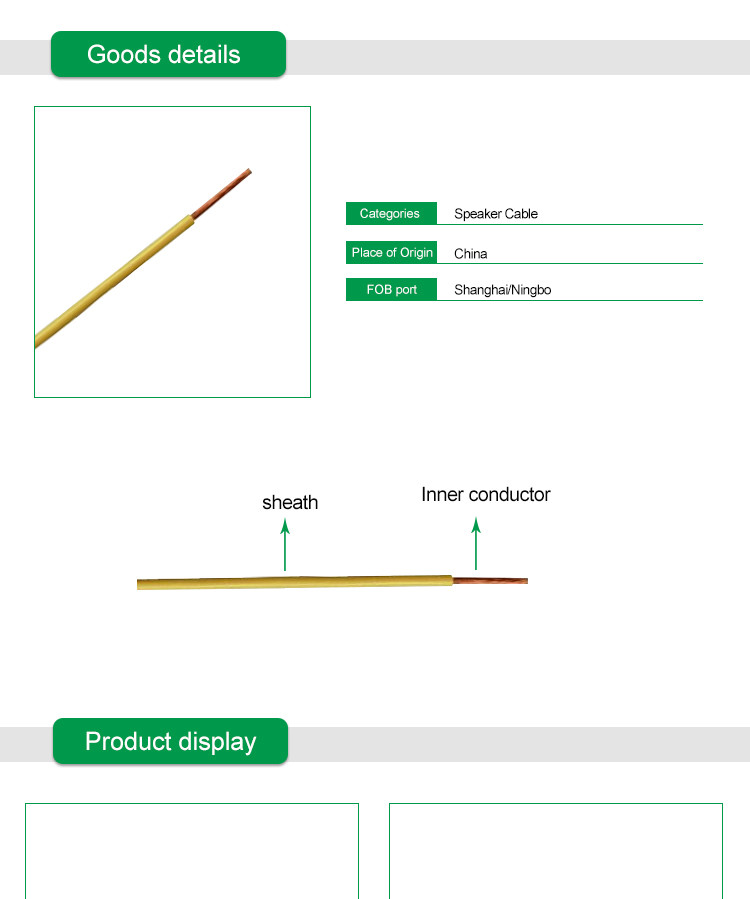

Construction
Stranded Bare Copper Conductor and PVC Insulated
Standard Packing
100m, 500FT, 200m, 1000FT, 500m
Technical Data
Temperature Range: -20°C to +70°C
Max Working Voltage: 300/500V, 450/750V
Max Current: 1 amp per core
Standards
BS4737: Insulated cables, PVC insulated for intruder alarm systems
NEC 725/800: CM / CL2,
Specifications
Conductor
Insulation
Overall
Nom. Area Max. Resistance at 20°C Thickness Min.Resistance at 70°C Dia.

mm²
MΩ/km
mm
MΩ/km
mm
RV0.5
0.5
39
0.6
0.013
2.6
RV0.75
0.75
26
0.6
0.012
2.8
RV1.0
1
19.5
0.6
0.01
3
RV1.5
1.5
13.3
0.7
0.009
3.5
RV2.5
2.5
7.98
0.8
0.009
4.2
