Flexible RVV Cable
Detail Information
China Manufacturer Supplier Made in China

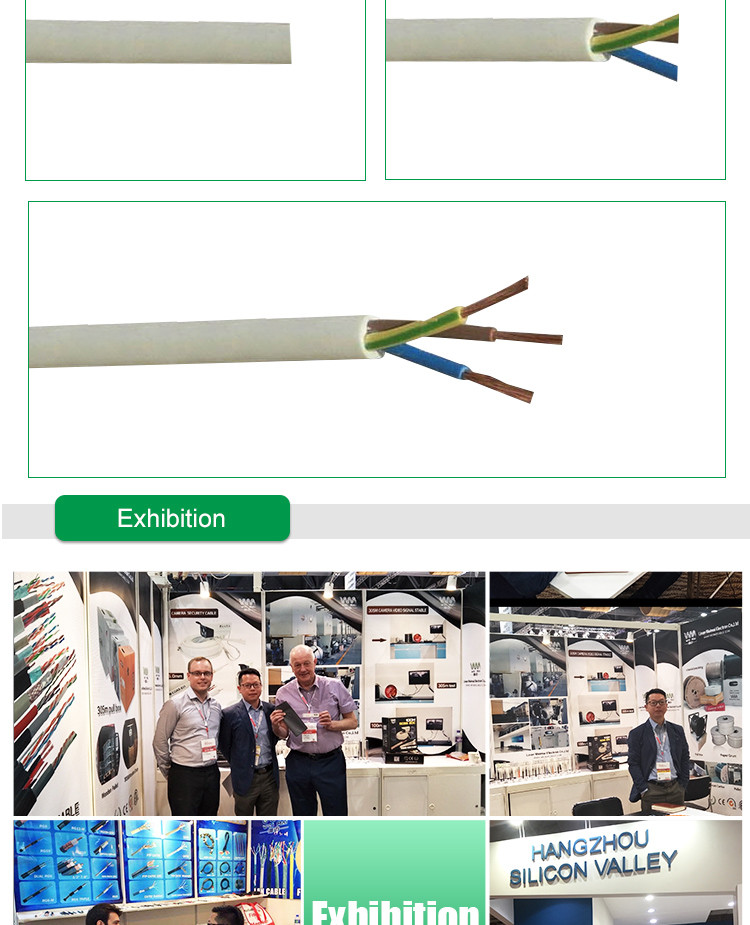

Flexible RVV Cable
1. PVC Insulated |
2. Unsheathed |
3. Stranded Copper Conductor |
4. RVV flexible power cable |
Unshielded RVV Flexible Power Cable |
Applications |
Suitable for use in conduit and for fixed, protected installation of Wiring Burglar Alarm, Public Address Systems,Intercoms, Telephone Stations, Speakers, Instrumentation, Control and other Low Voltage Circuits that are Power- Limited and anti-interference needed |

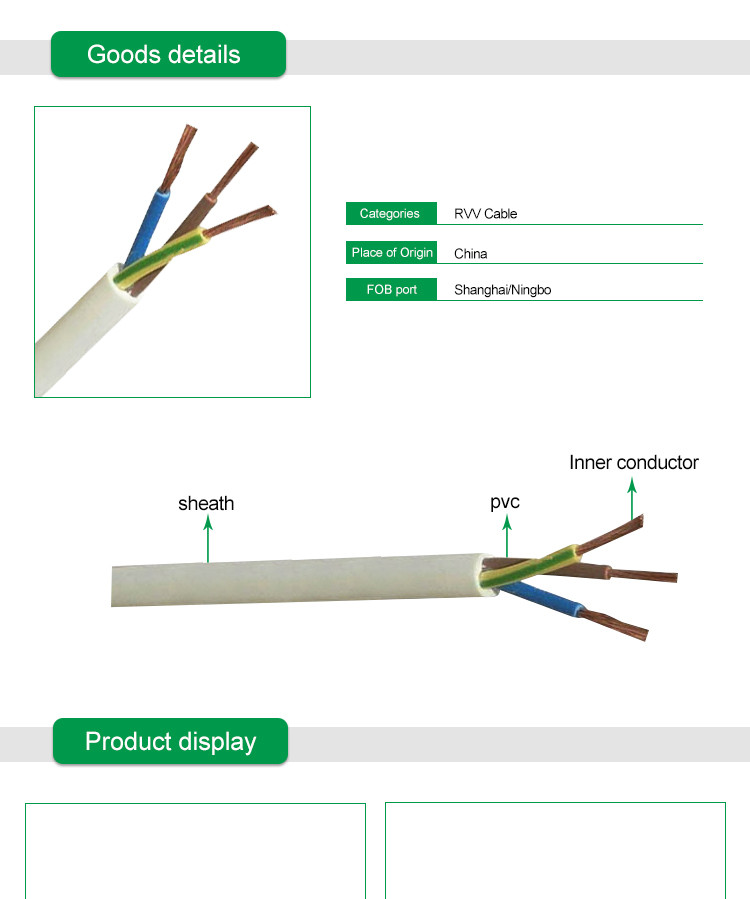

Construction |
Stranded Bare Copper Conductor and PVC Insulated |
Standard Packing |
100m, 500FT, 200m, 1000FT, 500m |
Technical Data |
Temperature Range: -20°C to +70°C |
Max Working Voltage: 300/500V, 450/750V |
Max Current: 1 amp per core |
Standards |
BS4737: Insulated cables, PVC insulated for intruder alarm systems |
NEC 725/800: CM / CL2, |
Specifications |
Conductor | Insualtion | Jacket |
Cores × Nom. Area Max. Resistance at 20°C Thickness Min. Resistance at 70°C Thickness Min. Dia. Max. |
mm² | MΩ/km | mm | MΩ/km | mm | mm | mm |
RVV2×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6 | 7.6 |
RVV2×1.0 | 19.5 | 0.6 | 0.01 | 0.8 | 6.4 | 8 |
RVV2×1.5 | 13.3 | 0.7 | 0.01 | 0.8 | 7.4 | 9 |
RVV2×2.5 | 7.98 | 0.8 | 0.009 | 1 | 8.9 | 11 |
RVV3×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6.4 | 8 |
RVV3×1.0 | 19.5 | 0.6 | 0.01 | 0.8 | 6.8 | 8.4 |
RVV3×1.5 | 13.3 | 0.7 | 0.01 | 0.9 | 8 | 9.8 |
RVV3×2.5 | 7.98 | 0.8 | 0.009 | 1 | 9.6 | 12 |
RVV4×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6.8 | 8.6 |
RVV4×1.0 | 19.5 | 0.6 | 0.01 | 0.9 | 7.6 | 9.4 |
RVV4×1.5 | 13.3 | 0.7 | 0.01 | 1 | 9 | 11 |
RVV4×2.5 | 7.98 | 0.8 | 0.009 | 1.1 | 10.5 | 13 |
RVV5×0.75 | 26 | 0.6 | 0.011 | 0.9 | 7.4 | 9.6 |
RVV5×1.0 | 19.5 | 0.6 | 0.01 | 0.9 | 8.3 | 10 |
RVV5×1.5 | 13.3 | 0.7 | 0.01 | 1.1 | 10 | 12 |
RVV5×2.5 | 7.98 | 0.8 | 0.009 | 1.2 | 11.5 | 14 |
