RG412M (P3.412.JCA) WITH MESSENGER
| Categories | RG412 cable |
|---|---|
| Brand | WEIMAI CABLE |
| Download DOC |  |
| Update Time | Apr 26,2024 |
Detail Information
Coaxial Cable China Manufacturer Supplier Made in China

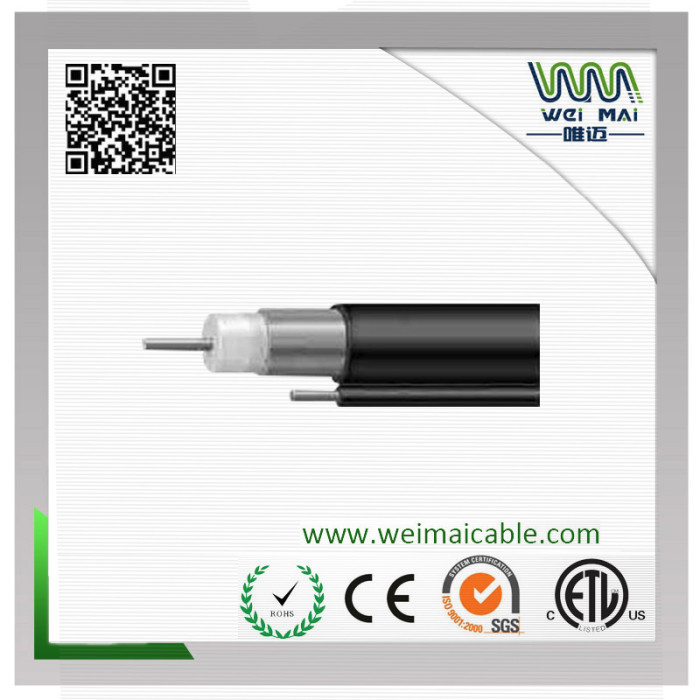

RG412M (P3.412.JCA) WITH MESSENGER
Impedance:75±3Ohm Capacitance:50±3nf/km
Velocity of Propagain:87% FOB Pront :ShangHai/NingBo
| 1) Construction |
| Center Conductor: | 2.26+0.01mm Solid Copper/Copper Clad Aluminum |
| Dielectric: | 9.19+0.05mmFoam PE |
| Outer Conductor: | 10.46mm Aluminum Tube |
| Outer Conductor Thickness: | 0.64mm |
| Jacket: | 11.99+0.05mm PVC / PE |
| Jacket Wall Thickness: | 0.76mm |
| Messenger: | 2.77mm Steel |
| Jelly/APD | Per Customers Special Requirement |
| 2) Characteristics |
| Impedance: | 75+3 Ohm |
| Capacitance: | 50+3nF/km, 15.3+1pF/ft |
| Velocity of Propagation: | 87% |
| 3) Attenuation |
| Attenuation | [@68o F. (20o C.) |
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
| 5 | 0.19 | 0.62 |
| 50 | 0.63 | 2.07 |
| 108 | 0.94 | 3.08 |
| 150 | 1.12 | 3.67 |
| 193 | 1.28 | 4.20 |
| 250 | 1.47 | 4.82 |
| 300 | 1.62 | 5.31 |
| 350 | 1.78 | 5.84 |
| 400 | 1.88 | 6.17 |
| 450 | 2.01 | 6.59 |
| 500 | 2.13 | 6.99 |
| 550 | 2.24 | 7.35 |
| 600 | 2.35 | 7.71 |
| 750 | 2.65 | 8.69 |
| 1000 | 3.11 | 10.20 |
