Coaxial Cable RG59 Triple Shield 75% 75 Ohm
Coaxial Cable RG59 Triple Shield  75%   75 Ohm
CategoriesCoaxial Cable RG59 75Ohm
AlbumView larger image
BrandWEIMAI CABLE
ModelWM-COAX-35
FOB portShanghai Ningbo
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Download DOC
Update Time2020-02-26
Detail Information

Coaxial Cable China Manufacturer Supplier Made in China

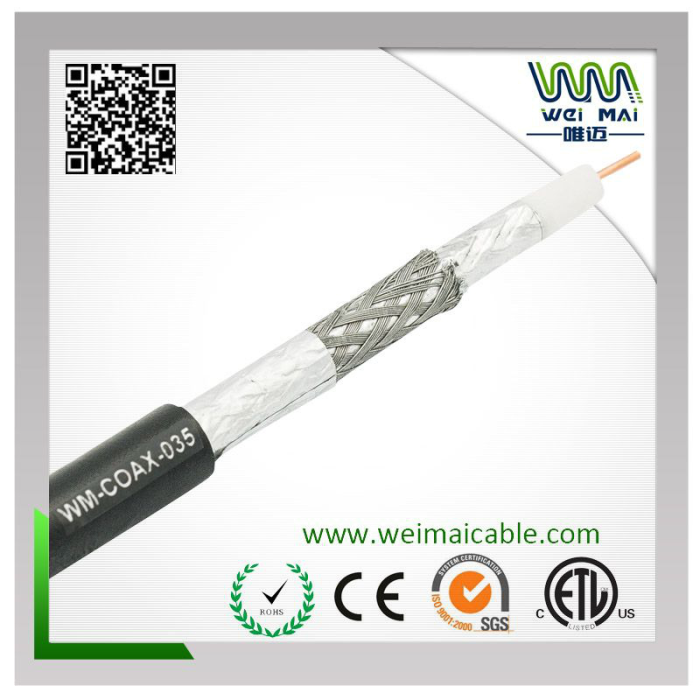

Coaxial Cable RG59 Triple Shield  75%   75 Ohm

Impedance:75±3Ohm             Capacitance:54±3pf/m              Velocity of Propagain:85%

Reutm Los:20dB min(5-2300MHZ)                                          FOB Pront :ShangHai/NingBo


1) Construction

Center Conductor:

0.81+0.01mm Solid Copper/Copper Clad Steel

Dielectric:

3.7+0.05mmFoam PE

Shield:

Bonded Al Foil

Braid Coverage:

96X0.12mm Al alloy  Pitch30

Shield:

High temperature  Al Foil

Jacket:

6.10+0.10mmPVC Black

Jelly/APD

Per Customers Special Requirement

2) Characteristics

Impedance:

75+3 Ohm

Capacitance:

54+3pF/m

Velocity of Propagation:

85%

Return Loss:

20dB min (5-2300MHz)
Attenuation
Attenuation[@68o F. (20o C.)]
Frequency (MHz)Max. (dB/100 ft.)Frequency (MHz)Max. (dB/100 ft.)
50.864005.10
552.054505.40
832.455005.70
1873.605505.95
2113.806006.20
2504.107506.97
3004.458657.52
3504.8010008.12
